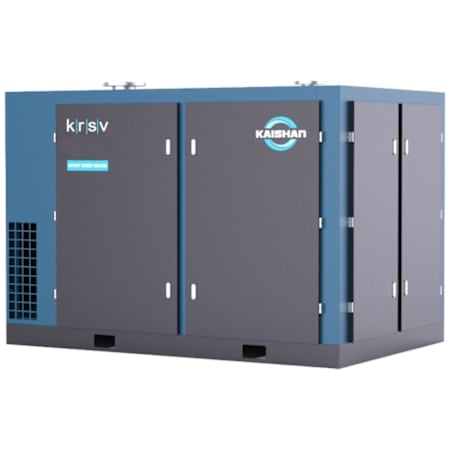

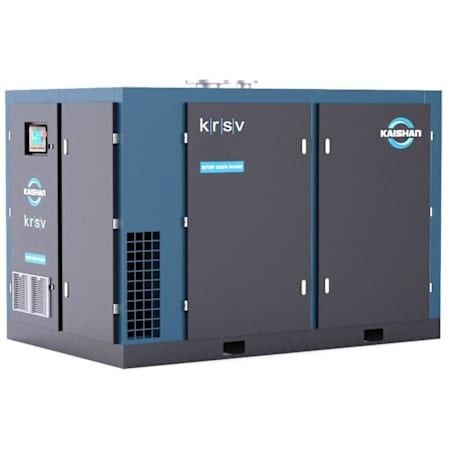

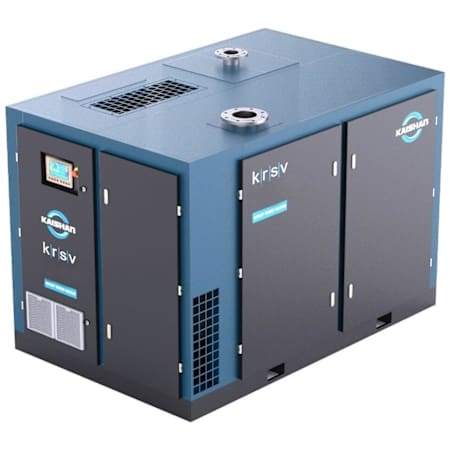

Kaishan 75 HP 29.9 Max PSI Stationary Electric (460 Volt 3 Phase) Variable Speed Tankless Rotary Air Compressor

Product Information:

• KRSV Industrial Rotary Screw Variable Speed Vacuum Pump
  • Highly reliable, world-class efficiency, and big cost savings
  • Ideal for medical, woodworking, food/beverage, printing & many more applications


• Rotary Screw Positive Displacement Vacuum Pump Technology
  • Creates vacuum by drawing air or gas from the chamber
  • Discharging back into the atmosphere through intermeshing rotary screws
  • Continuous process flow moves gas at a constant speed for stability


• High-Efficiency TEFC (IP54) Electric Direct Drive Motor w/ Variable Speed
  • Long operating life, lower power, and major cost savings
  • Operates efficiently by matching flow to demand while maintaining pressure control

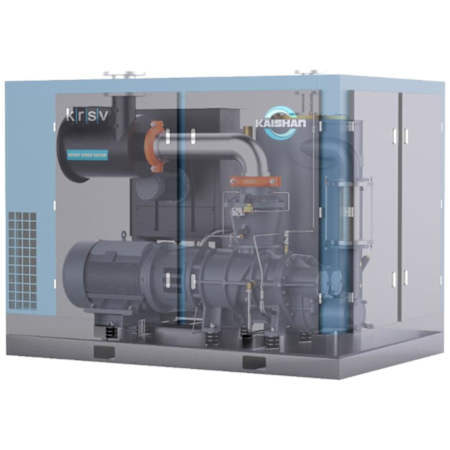

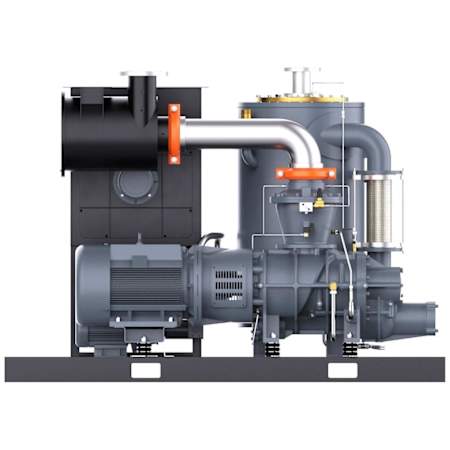

  • Direct-drive vacuum motor couples directly to vacuum driveshaft powers vacuum airend


• Performance Data - 15 to 29.9 Inlet Pressure HgV (See Flow Chart)
  • 15 PSI, 2680 Max RPM, 1680 CFM, 59.4 Input Power KW
  • 27 PSI, 3120 Max RPM, 2219 CFM, 57.2 Input Power KW
  • 29.9 PSI, 3360 Max RPM, 1326 CFM, 58.3 Input Power KW

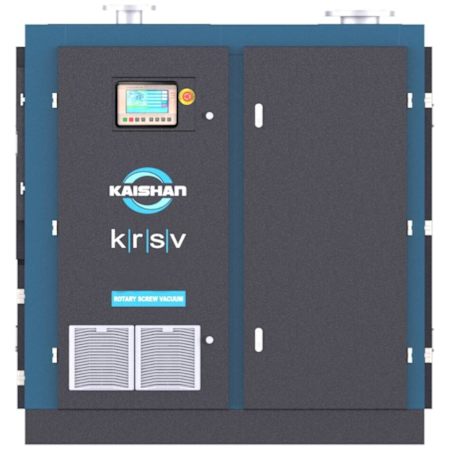

• MAM-6090 Digital Smart Control Panel
  • Protects in the event of a fault and alerts with built-in alarms
  • Large display screen with icon touch display monitors & controls key functions

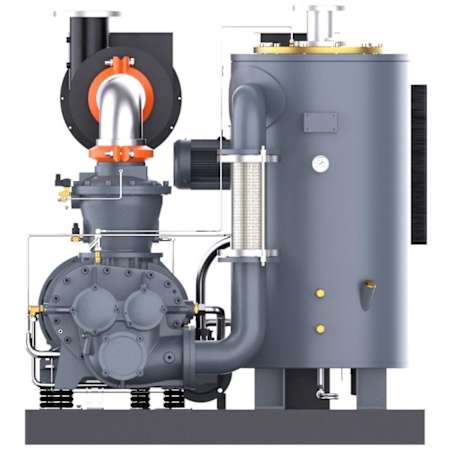

• Premium SKYv Series Air End & Variable Discharge Port
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • 100% SKF bearing for longer life expectancy averaging 100,000 hours
  • Achieves maximum efficiency by adjusting internal compression ratio


• Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation, easy access for serviceability, and advanced electricals
  • 316 stainless steel control tubing and brass fittings or longer life & less downtime


• Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Laminar flow inlet valve for minimum pressure drop and increased output
  • Cast aluminum oil cooler increases life expectancy in harsh environments

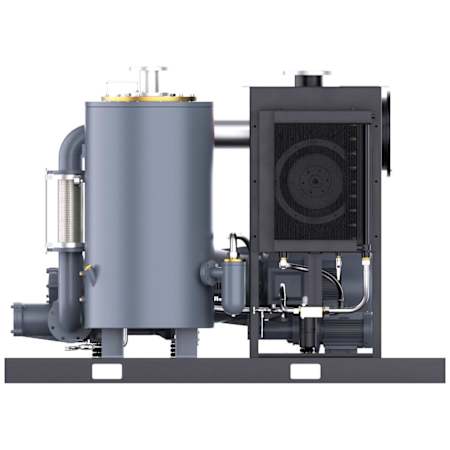

• 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element


• Limited Manufacturer Warranty: Air End, Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year

Specifications:

• Fuel Type: Electric
• Height: 83"
• Width: 75"
• Length: 106"
• Product Weight: 8245 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 6"

Pump Specifications:

• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 2,248
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 75 HP
• Amperage: 83.3A
• dB Rating: 77
• Voltage: 460V
