The JennAir JDS1750FP has been discontinued
** See similar or replacement items below **
Item # bci3919753
JennAir 30 Inch Wide 6.4 Cu. Ft. Dual Fuel Range with Downdraft Ventilation
Model: JDS1750FP|Item: bci3919753
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- The 6.4 total cubic feet and powerful cooking surface allow to create a variety of dishes with ease
- Powerful 17,000 BTU burners can handle high-powered cooking while still being gentle enough for delicate simmering
- Roll-out racks can be easily repositioned or removed to make room for larger dishes
- Highly interactive, full color LCD control panel features menu-driven controls to guide you in selecting cooking options, such as temperature and cooking mode
Product Technologies:
-
- Dual-Fan MultiModeĀ® True Convection System: This system features an oval heating element and two round fans that distribute heat evenly and thoroughly throughout the oven. Six different convection cooking modes, including bake, roast and broil, all deliver superbly consistent results.
-

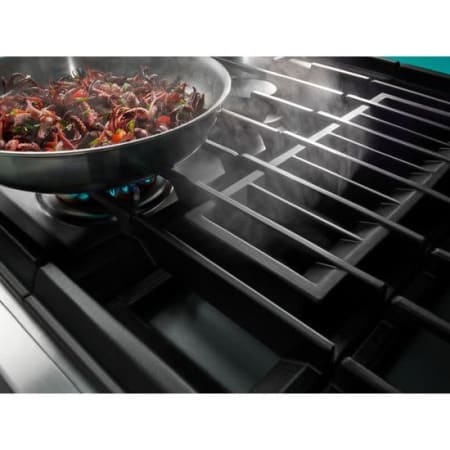

- JX3⢠Downdraft Ventilation System: Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.
-
- DuraFinishĀ® Protection: With excellence in every detail, DuraFinishĀ® Protection helps keep your oven looking like new, resisting yellowing, staining and scratching.
Specifications:
- Total Capacity: 6.4 Cu. Ft.
- Convection: Yes
- Self Cleaning: Yes
- Depth: 28-1/8"
- Height: 36"
- Width: 29-7/8"
- Amperage: 40A
- Voltage: 240V
Dimensions and Measurements
Cutout Width | 30 in. |
Depth | 28.125 in. |
Height | 36 in. |
Nominal Width | 30 in. |
Product Weight | 220 lbs. |
Total Capacity | 6.4 cu. ft. |
Width | 29.875 in. |
Dimensions and Measurements
Cutout Width | 30 in. |
Depth | 28.125 in. |
Height | 36 in. |
Nominal Width | 30 in. |
Product Weight | 220 lbs. |
Total Capacity | 6.4 cu. ft. |
Width | 29.875 in. |
Included Components
Baking Element | Yes |
Clock | Yes |
Griddle | No |
Interior Light | Yes |
Light Included | Yes |
Meat Thermometer | No |
Included Components
Baking Element | Yes |
Clock | Yes |
Griddle | No |
Interior Light | Yes |
Light Included | Yes |
Meat Thermometer | No |
Characteristics and Features
Broil Element | Yes |
Bulb Type | Incandescent |
Burner Style | Cast Brass |
Continuous Grates | Yes |
Control Type | Knob |
Convection | Yes |
Display Type | Digital |
Downdraft Ventilated | Yes |
Drawer Type | Oven Drawer |
Installation Type | Slide In |
Number Of Burners | 4 |
Number of Racks | 3 |
Self Cleaning | Yes |
Smart Home | No |
Characteristics and Features
Broil Element | Yes |
Bulb Type | Incandescent |
Burner Style | Cast Brass |
Continuous Grates | Yes |
Control Type | Knob |
Convection | Yes |
Display Type | Digital |
Downdraft Ventilated | Yes |
Drawer Type | Oven Drawer |
Installation Type | Slide In |
Number Of Burners | 4 |
Number of Racks | 3 |
Self Cleaning | Yes |
Smart Home | No |
Electrical and Operational Information
Amperage | 40 |
Auto Shut Off | No |
Back Left Burner BTU | 5600 |
Back Right Burner BTU | 9200 |
Frequency | 60 Hertz |
Front Left Burner BTU | 17000 |
Front Right Burner BTU | 15000 |
Fuel Type | Dual Fuel |
Gas Type | Natural Gas |
Voltage | 240 |
Electrical and Operational Information
Amperage | 40 |
Auto Shut Off | No |
Back Left Burner BTU | 5600 |
Back Right Burner BTU | 9200 |
Frequency | 60 Hertz |
Front Left Burner BTU | 17000 |
Front Right Burner BTU | 15000 |
Fuel Type | Dual Fuel |
Gas Type | Natural Gas |
Voltage | 240 |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Energy Star | No |
Product Variation | Range with Single Oven |
Warranty and Product Information
ADA | Yes |
Approved for Commercial Use | Yes |
Certifications | UL |
Energy Star | No |
Product Variation | Range with Single Oven |
