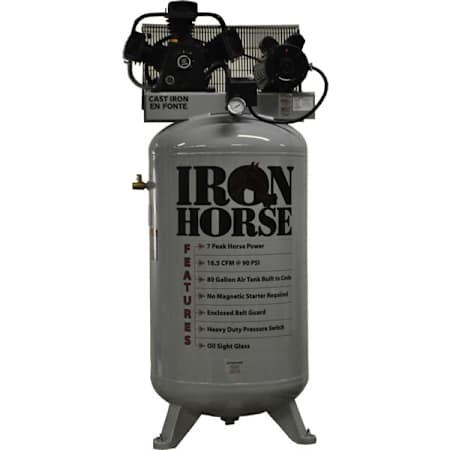

Iron Horse 5 HP 80 Gal 150 Max PSI 16.5 CFM Single-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

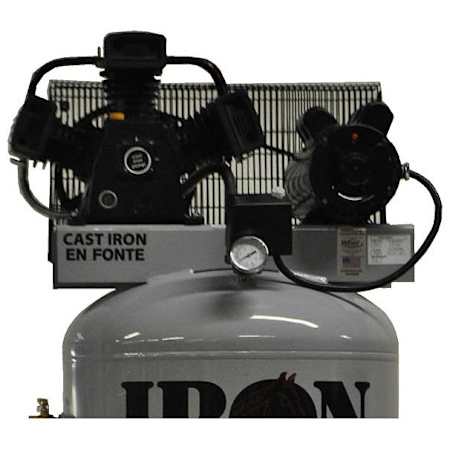

• Rugged Compressor With 3 Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • High efficiency reed valves provide maximum performance


• Individual & Removable Cylinders: Smoother & cooler operation for optimum durability


• No Magnetic Motor Starter Needed: Improved performance with less expense


• Heavy-Duty Pressure Switch With On/Off Control: 50% duty cycle delivers 16.5 CFM at 90 PSI; 150 PSI maximum


• 5 HP Run, 7 HP (Peak) 208-230 Volt, Single Phase Electric Motor: Protected against overheating; requires 22.5 amp circuit


• Easy-View Oil Sight Gauge: Lets you check oil level at a glance for easy maintenance


• Efficient Heat Removal From Fly Wheel: Cooler running & longer compressor life


• Sturdy Metal Belt Guard: Protects both the belt & the operator


• 80 Gallon ASME Registered Tank
  • Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
  • CSA certified for increased assurance of quality and safety



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 68"
• Width: 23-1/2"
• Length: 36"
• Product Weight: 330 lbs
• Warranty: 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 1/2"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 17
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 22.5A
• Voltage: 208, 230V
• Voltage: 208, 230V
