The Ingersoll Rand DA127EC has been discontinued
** See similar or replacement items below **
Item # bci5120947
Ingersoll Rand D-EC High Efficiency Cycling Refrigerated Air Dryer (75 CFM)
Model: DA127EC|Item: bci5120947
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Product Information:

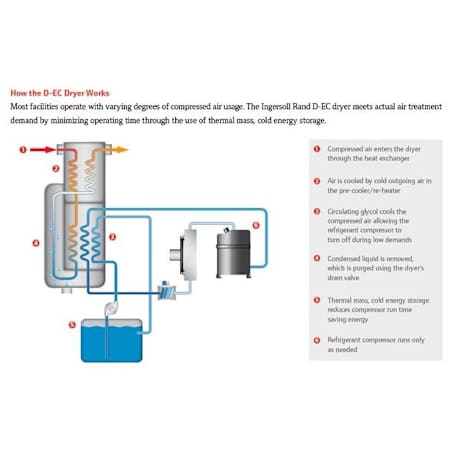

- Multi-Layer Heat Exchanger
- Provides high heat transfer efficiency
- Reduces compressor run time & energy costs
- Thermal Mass Cold Energy Storage: Reduces dryer compressor run time
- Compact Size: Premium components provide years of dependable operation
- Digital Controller
- Microprocessor automatically deactivates during low load times
- Single point connections for plug-and-play installation
- Efficient Refrigeration Condenser: Dry, high quality compressed air with maximum energy savings
- R134a Refrigerant: Zero ozone depletion potential minimizes environmental impact
- Drain Isolation Valve With Timed Solenoid Drain: Automatic maintenance for ease of operation
- Perfect Match For Ingersoll Rand High Efficiency Compressors
- Effectively treats air when demand fluctuates on a regular basis
- Uses only .94 operating KW per hour at full capacity
Specifications:
- Warranty: 1 Year Commercial and 1 Year Residential
- Product Weight: 150 lbs
- Fuel Type: Electric
- Height: 30-3/8"
- Length: 22-7/16"
Air Dryer Specifications:
- Air Inlet Size: 1"
- Air Outlet Size: 1"
- Amperage: 13.45A
- Horsepower: 20 HP
Pump Specifications:
- After Cooler Included
Dimensions and Measurements
Height | 30.38 in. |
Length | 22.44 in. |
Product Weight | 150 lbs. |
Width | 16.63 in. |
Dimensions and Measurements
Height | 30.38 in. |
Length | 22.44 in. |
Product Weight | 150 lbs. |
Width | 16.63 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer CFM | 75 CFM |
Air Inlet Size | 1" |
Air Outlet Size | 1" |
Alarm Light | Yes |
Automatic Drain Valve Included | No |
High Efficiency | Yes |
High Temperature | No |
Maximum Ambient Temperature | 100 °F |
Maximum Inlet Temperature | 100 °F |
Non-Cycling | No |
Regenerative | No |
Characteristics and Features
After Cooler Included | No |
Air Dryer CFM | 75 CFM |
Air Inlet Size | 1" |
Air Outlet Size | 1" |
Alarm Light | Yes |
Automatic Drain Valve Included | No |
High Efficiency | Yes |
High Temperature | No |
Maximum Ambient Temperature | 100 °F |
Maximum Inlet Temperature | 100 °F |
Non-Cycling | No |
Regenerative | No |
Electrical and Operational Information
Air Dryer Voltage | 115 V |
Amperage | 13.45 |
Fuel Type | Electric |
Horsepower | 20 |
Electrical and Operational Information
Air Dryer Voltage | 115 V |
Amperage | 13.45 |
Fuel Type | Electric |
Horsepower | 20 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
