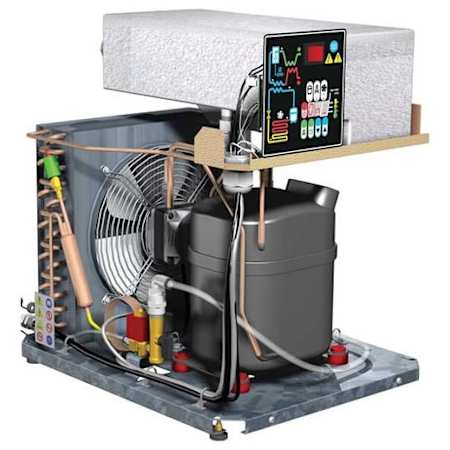

Ingersoll Rand Non-Cycling Refrigerated Air Dryer 5HP (15 CFM)



Product Information:

• For Use With Compressors With Aftercoolers: Keeps damp air from rusting tools & washing away lubricants


• ISO Class 6 Dryer Is Reliable And Operationally Efficient
  • 15 CFM with exceptionally low pressure drop; 5 HP motor
  • Integral stainless steel moisture separation
• Continuous Pressure Class H Dew Point Performance
  • Optimized pressure 50°F dew point
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance
• User Friendly Controls: Simple, easy to read control panel uses a color coded diagram


• Environmentally Friendly
  • Uses 115V, 1 phase, 2.23 amp power and R134A refrigerant
  • Sturdy, powder coated finish
  • Aluminum braze plate heat exchanger
• Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 140°F; maximum ambient temp 122°F
  • 3/8" NPT inlet & outlet fittings
  • Installation of an upstream 1.0 micron prefilter is recommended



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 40 lbs
• Fuel Type: Electric
• Height: 16"
• Length: 16"

Air Dryer Specifications:

• Air Inlet Size: 3/8"
• Air Outlet Size: 3/8"
• Automatic Drain Valve Included
• Horsepower: 5 HP

Pump Specifications:

• After Cooler Included
