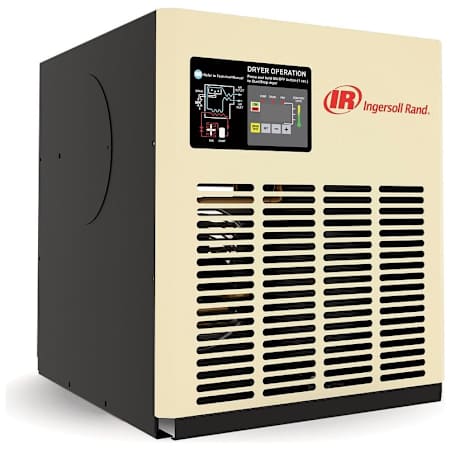

Ingersoll Rand 50 CFM Non-Cycling Refrigerated Air Dryer

Features:

• For use with compressors with aftercoolers. Keeps damp air from rusting tools and washing away lubricants
• ISO Class 6 dryer is reliable and operationally efficient. Integral stainless steel moisture separation
• Continuous pressure Class H dew point performance. Optimized pressure 50 degrees F dew point. Temperature driven variable speed fan for continuous heat removal. Electronic solenoid drain valve for optimal performance
• User friendly controls: simple, easy to read control panel uses a color coded diagram. Environmentally friendly
• Uses 1 phase at 5.24 amp power and R513A refrigerant. Sturdy, powder coated finish. Aluminum braze plate heat exchanger. Maximum pressure of 203PSI. Installation of an upstream 1.0 micron prefilter is recommended

Specifications:

• Warranty: 1 Year
• Product Weight: 69.4 lbs
• Certifications:
  • CSA
  • UL
• Fuel Type: Electric
• Height: 24-7/16"
• Length: 18"
• Width: 20-1/16"

Air Tool Specifications:

• CFM: 50

Air Dryer Specifications:

• Voltage: 115V
• Air Inlet Size: 1/2"
• Air Outlet Size: 1/2"
• Automatic Drain Valve Included
• Amperage: 5.24A
• Horsepower: 20" HP

Tank Specifications:

• Electric Drain Valve Included
