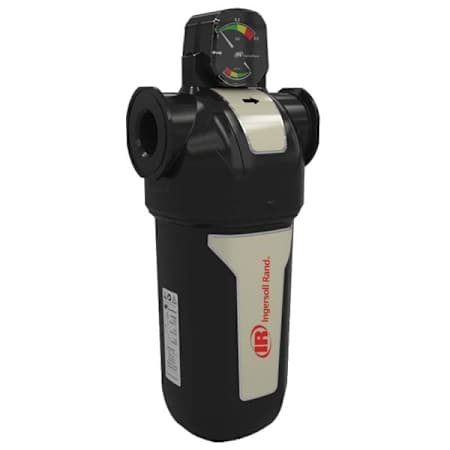

Ingersoll Rand 1" 0.01 Micron High Efficiency Coalescing Compressed Air Filter (110 CFM)

Product Information:

• High Efficiency Oil Removal Filtration
  • Particle removal down to 0.01 micron; rated for 110 SCFM at 100 PSI at 100°F
  • Including water & oil aerosols; precede with Grade G filter
  • Maximum remaining oil aerosol of 0.01 mg/m3 (0.01 ppm) @ 60°F


• Efficient Flow Path
  • Deep pleated element design minimizes pressure drop
  • Reduced turbulence enhances compressor efficiency


• Zero Clearance Design: Minimal space requirements install where other filters won't fit


• No-Touch Filter Element
  • Efficient operation for up to 1 year between element change-outs
  • Element changes are easy- just dump out the old, drop in the new
  • Helps reduce overall ownership costs


• All Aluminum Die-Cast Body: Proprietary coating inside & out protects against corrosion


• Patented Dual Indicator: Shows differential pressure drop & operating efficiency


• Industrial Grade Automatic Brass Float Drain
  • Discharges more reliably than lower quality plastic drains
  • Minimum operating temperature 34° F; 176°F maximum



Specifications:

• Product Weight: 4.5 lbs
• Height: 12-5/8"
• Length: 5"

Air Tool Specifications:

• CFM: 110

Air Dryer Specifications:

• Air Inlet Size: 1"
• Air Outlet Size: 1"
