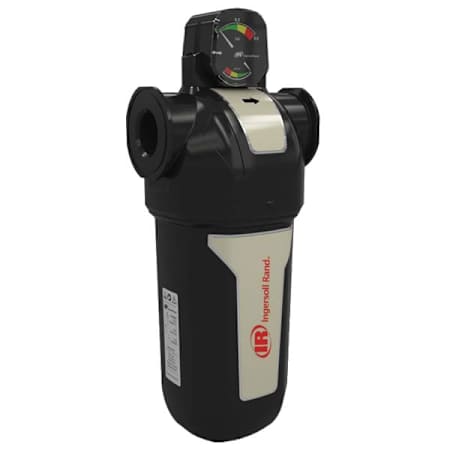

Ingersoll Rand 1/2" 250 PSI 1.0 Micron General Purpose Compressed Air Filter (22 CFM)

Product Information:

• General Purpose Filtration
  • Particle removal down to 1 micron
  • Including coalesced liquid, water and oil
  • Maximum remaining oil aerosol of 0.1 mg/m3 (0.1 ppm) @ 60°F


• Efficient Flow Path
  • Deep pleated element design minimizes pressure drop
  • Reduced turbulence enhances compressor efficiency


• Zero Clearance Design: Minimal space requirements install where other filters won't fit


• No-Touch Filter Element
  • Efficient operation for up to 1 year between element change-outs
  • Element changes are easy- just dump out the old, drop in the new
  • Helps reduce overall ownership costs


• All Aluminum Die-Cast Body: Proprietary coating inside & out protects against corrosion


• Patented Dual Indicator: Shows differential pressure drop & operating efficiency


• Industrial Grade Automatic Brass Float Drain
  • Discharges more reliably than lower quality plastic drains
  • Minimum operating temperature 34° F; 176°F maximum



Specifications:

• Product Weight: 1.2 lbs
• Height: 8-7/8"
• Length: 3"

Air Tool Specifications:

• CFM: 22

Air Dryer Specifications:

• Air Inlet Size: 1/2"
• Air Outlet Size: 1/2"
