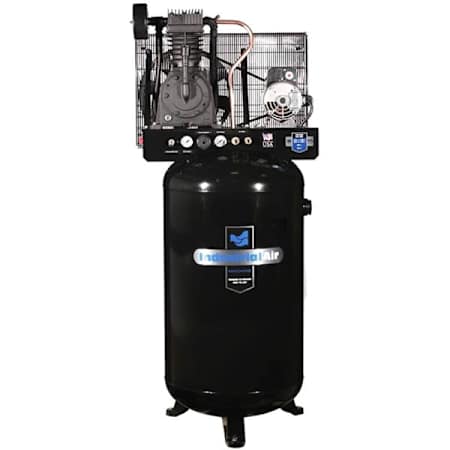

Industrial Air 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor

Product Information:

• Industrial Air Two-Stage Air Compressor: Provides enough power to operate more than one air tool or device at one time


• 5-HP Electric Motor With Thermal Overload Protection
  • Improved compression efficiency and low pump RPM
  • T.O.P.S. protects the motor from voltage fluctuations; Magnetic starter not required


• Patented Cast Iron Pump & Piston Design
  • Delivers 17.9 CFM at 100 psi and 17.0 CFM at 175 psi
  • Industrial style air intake filter and large oil level sight glass for easy maintaining


• Integrated Control Panel
  • Two large pressure gauges and air outlets for convenience
  • Air flow regulator with pressure relief valve for safe operation


• Patented Cast Iron Flywheel & Asymmetrical Deep Groove Cooling Fins
  • Large fins for low pump RPM, improved cooling, longer pump life
  • Cooler pumps last longer & run more effectively with patented fins


• 80-Gallon Air Tank
  • ASME rated for safety; 175 PSI maximum pressure
  • Manual oil drain with 4" extension simplifies maintenance


• 2 Year Limited Factory Warranty
  • Protects your investment
  • Purchase & use of maintenance kit doubles the pump warranty



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 80"
• Width: 34-3/4"
• Length: 31-1/2"
• Product Weight: 470 lbs
• Warranty: 2 Year Commercial and 2 Year Residential

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 18
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 22A
• Voltage: 230V
• Voltage: 230V
