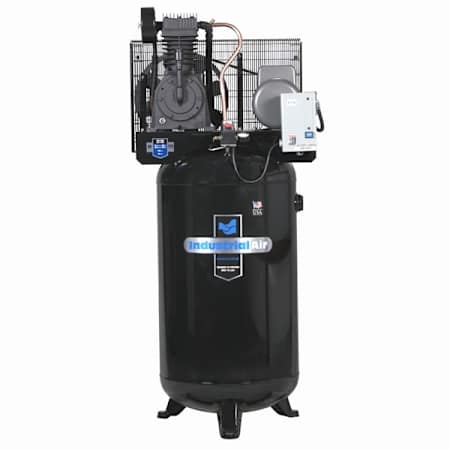

Industrial Air 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor with Starter

Product Information:

• Patented 2-Stage Pump Design: Runs cooler, lasts longer


• Patented Piston Design: Improved compression efficiency


• Patented Asymmetrical Cooling Fins: Draws heat away from the precision bored cylinders


• Patented Cast Iron Flywheel: Large, extended fins improve pump cooling & lower RPMs


• Industrial Class Electric Motor
  • High quality 4 pole, 1725 RPM, NEMA rated
  • Wires easily into your 240 volt, single phase system


• Pre-Wired Magnetic Starter: Saves time and money


• 80 Gallon ASME Tank
  • Enough power to operate more than 1 tool at a time
  • 17 CFM at 100 PSI; 16.2 CFM at 175 PSI; 3/4" air outlet


• Unique Metal Belt Guard Design: Improves pump cooling by as much as 60% over other designs


• 2 Year Factory Warranty: Purchase & use of maintenance kit doubles the pump warranty

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 77-1/4"
• Width: 29"
• Length: 37"
• Product Weight: 570 lbs
• Warranty: 2 Year Commercial and 2 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 17
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 22A
• Voltage: 230V
• Voltage: 230V
