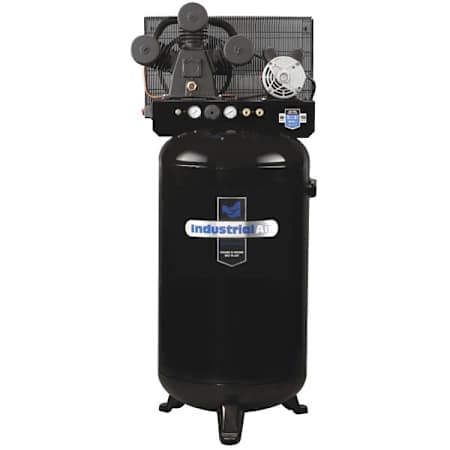

Industrial Air 4.5 HP 80 Gal 155 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor
Model: ILA4708065|Item: bci5120774
$1,653.05
4 In Stock
Details
Product Information:
- Heavy Duty, Single Stage Compressor
- Powers a wide variety of air tools
- High air flow, single stage unit for hobbyists & contractors
- Cast Iron 3 Cylinder Pump
- Oil lubricated & sight glass for smooth operation & maintenance
- Delivers 16.1 CFM's @ 40 PSI & 14 CFM's @ 90 PSI
- 155 PSI max pressure for optimum tool performance
- Integrated Control Panel: Easy access 2 quick connects, tank & tool pressure, relief valve
- Large Capacity 80 Gallon Air Receiver
- More air for longer run times; ASME approved for safety
- Easily powers ratchets, impacts, spray guns, hammers, etc.
- Shipped With Synthetic Oil: Provides optimum performance & long pump life
- Vertical Tank: 31.5L x 34.75W x 77H takes up less floor space
- Limited Factory Warranty
- 1-yr parts and service warranty
- 2-yr warranty on pumps reed valves, crankcase, bearings and units tank
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 77"
- Width: 34-3/4"
- Length: 31-1/2"
- Product Weight: 354 lbs
- Warranty: 1 Year Residential and 90 Day Commercial
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/8"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 14
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 4.5 HP
- Amperage: 22A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 14 |
Height | 77 in. |
Length | 31.5 in. |
Product Weight | 354 lbs. |
Width | 34.75 in. |
Dimensions and Measurements
CFM | 14 |
Height | 77 in. |
Length | 31.5 in. |
Product Weight | 354 lbs. |
Width | 34.75 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/8" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/8" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 22 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 4.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 22 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 4.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
