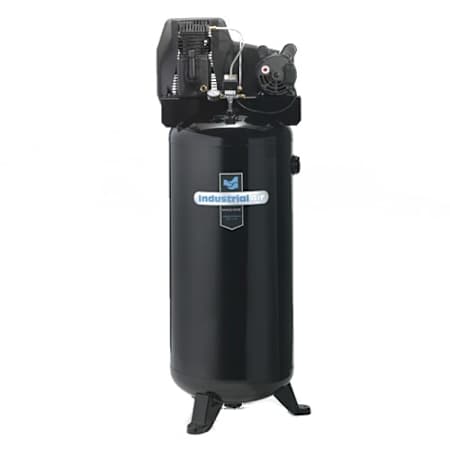

Industrial Air 3.5 HP 60 Gal 155 Max PSI Single-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor
Model: ILA3606056|Item: bci5120810
$874.99
Special Order
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 2 to 4 weeks
-Details
Product Information:
- Cast Iron, Twin-Cylinder, Oil Lubricated Pump
- One-piece cast iron crankcase w/ 12" cast iron balanced flywheel
- Thermally stable cast iron cylinder body
- Aluminum head & valve plate and automotive style ball bearings
- Develops 13.4 CFM at 40 PSI; 11.5 CFM at 90 PSI
- Oil Level Sight Glass: Easily accessible oil fill simplifies maintenance
- Heavy Duty 3.7-HP Induction Motor
- Designed for maximum performance and efficiency
- Requires at least a 15 amp circuit
- Operates on 240 volt, single phase power
- 60-Gallon Vertical Air Receiver: Provides more air for longer run times on air tools
- 155 PSI Max Pressure: Designed for optimum tool performance
- Synthetic Oil Included: Designed for optimum performance and long life
- Added Equipment: Pressure gauge and On/Off switch
- 2 Year Limited Factory Warranty
Specifications:
- Fuel Type: Electric
- Height: 68"
- Width: 27"
- Length: 30"
- Product Weight: 247 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 12
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3.5 HP
- Amperage: 17A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 11.5 |
Height | 68 in. |
Length | 30 in. |
Product Weight | 247 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 11.5 |
Height | 68 in. |
Length | 30 in. |
Product Weight | 247 lbs. |
Width | 27 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 25 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 25 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
