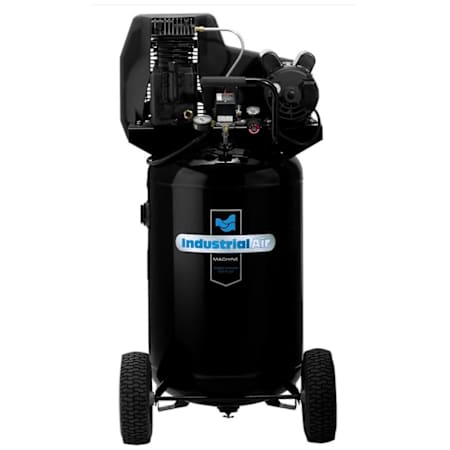

Industrial Air 1.9 HP 30 Gal 150 Max PSI Single-Stage Portable Electric (120, 240 Volt) Reciprocating Air Compressor
Model: ILA1883054|Item: bci5120794
$945.52
9 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Cast Iron, Twin-Cylinder, Oil Lubricated Pump
- One-piece cast iron crankcase
- Thermally stable cast iron cylinder body
- Aluminum head & valve plate and automotive style ball bearings
- Durable Swedish stainless steel reed valves
- Oil level sight glass and easily accessible oil fill
- 12" cast iron balanced fly wheel
- Heavy Duty 1.9-HP Induction Motor: Designed for maximum performance and efficiency
- 155 PSI Max Pressure: Designed for optimum tool performance
- 30-Gallon Vertical Portable Tank Design: Optimizes storage space & pneumatic tires make moving easy
- Dual-Voltage Motor: Wired for standard 120-Volt outlet, can be converted to 240-Volt
- Synthetic Oil Included: Designed for optimum performance and long life
- 1/4" NPT Air Outlet & On/Off Switch
- Quick-set regulator, tank & working pressure gauges
- Factory warranty: 1 year residential use, 90 days commercial use
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 49-3/4"
- Width: 24-3/4"
- Length: 24-3/4"
- Product Weight: 190 lbs
- Warranty: 2 Year Residential and 90 Day Commercial
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Lubrication Type: Oil Lubricated
- CFM: 6
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 1.9 HP
- Voltage: 120, 240V
- Voltage: 120, 240V
Dimensions and Measurements
CFM | 5.7 |
Height | 49.75 in. |
Length | 24.75 in. |
Product Weight | 190 lbs. |
Width | 24.75 in. |
Dimensions and Measurements
CFM | 5.7 |
Height | 49.75 in. |
Length | 24.75 in. |
Product Weight | 190 lbs. |
Width | 24.75 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7.1 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7.1 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.9 |
Maximum Operating Pressure (PSI) | 150 |
Stages | Single-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 2 Year Residential, 90 Day Commercial |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 2 Year Residential, 90 Day Commercial |
