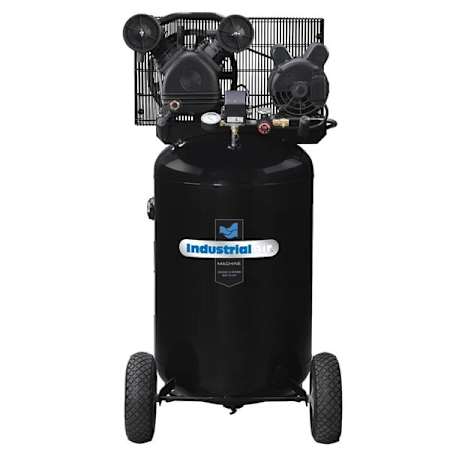

Industrial Air 1.6 HP 30 Gal 155 Max PSI Single-Stage Portable Electric (120, 240 Volt) Reciprocating Air Compressor
Model: ILA1683066|Item: bci5120694
$772.00
2 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Cast Iron V-Twin Cylinder Pump
- Durable & dependable performance drives many air tools
- Produces 6.2 CFM at 40 PSI; 5.3 CFM at 90 PSI
- Operating pressure 105-155 PSI with 155 PSI max
- Belt Driven & Oil Lubricated
- Less noise than direct drive compressors
- 10" cast iron balanced flywheel for smooth, powerful operation
- Heavy Duty Dual Voltage 1.6-HP Induction Motor: Wired for standard 120V outlet; may be converted to 240V use
- Quick-Set Regulator, Tank & Tool Pressure Gauges: Monitor compressor performance at a glance
- Quick Connect Air Outlet: Switch tools quickly & easily
- Vertical Frame With Handle: Pneumatic tires for maximum portability; quiets vibration
- Factory Warranty
- 1 year for residential use; 90 days for commercial use
- Limited to defect in materials and workmanship
- 30 Gallon Air Tank: Easily accessed oil fill makes maintenance simple
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 50"
- Width: 24-1/2"
- Length: 25"
- Product Weight: 154 lbs
- Warranty: 1 Year Residential and 90 Day Commercial
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 3/8"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 5
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 1.6 HP
- Amperage: 15, 7.5A
- Voltage: 120, 240V
- Voltage: 120, 240V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 5.3 |
Height | 50 in. |
Length | 25 in. |
Product Weight | 154 lbs. |
Width | 24.5 in. |
Dimensions and Measurements
CFM | 5.3 |
Height | 50 in. |
Length | 25 in. |
Product Weight | 154 lbs. |
Width | 24.5 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 6.2 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/8" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 6.2 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/8" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15, 7.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.6 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 15, 7.5 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 1.6 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Residential, 90 Day Commercial |
