Hafele HAWA Aperto Door Component Set for Single 88 Lb. Sliding / Stacking Cabinet Application
Model: 400.70.910|Item: bci1785614
from theHAWA Aperto Collection
$939.07
10 In Stock
Details
Includes:
- 2 running gears
- 3 fixing cups and cover caps
- 2 suspension bolts and screws
- 1 door guide
- 1 alignment bracket
- 4 2mm spacers and 2 3mm spacers
Features:
- Set for single door
- Smooth, quiet operation
- Left or right handed application
- Upper track and lower guide channel not included

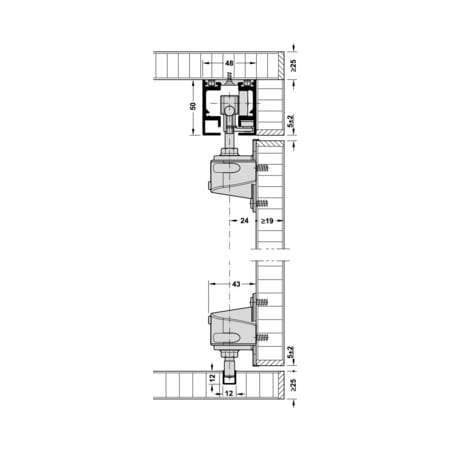

- Installation plan included
Specifications:
- Maximum door weight 88 lbs. (40 kg)
- For door thickness 3/4" to 1" (19 - 25 mm)
- Door up to 102.375" (2600 mm) height and between 15.75" - 35.5" (400 - 900 mm) width
- Height adjustable +/- 1/16" (2 mm)
- Depth adjustment up to 1" (25 mm)
Dimensions and Measurements
Door Thickness | 1", 3/4", 7/8" |
Max Door Weight | 88 lbs. |
Max Door Width | 35.5 in. |
Dimensions and Measurements
Door Thickness | 1", 3/4", 7/8" |
Max Door Weight | 88 lbs. |
Max Door Width | 35.5 in. |
Characteristics and Features
Material | Steel, Synthetic |
Number Of Doors | 1 |
Characteristics and Features
Material | Steel, Synthetic |
Number Of Doors | 1 |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | HAWA Aperto |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | HAWA Aperto |
