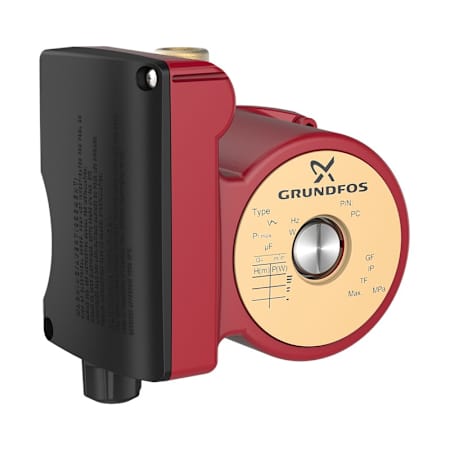

Grundfos UP 15-18 B5 1/25 HP 115V 4.9-14.5 GPM Bronze Hot Water Recirculation / Circulator Pump

UP B is a circulator pump with a bronze pump housing for drinking water applications.The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Grundfos UP 15-18 B5 Features:

• Ceramic shaft and radial bearings
• Carbon axial bearing
• Stainless steel rotor can and bearing plate
• Corrosion-resistant impeller constructed of composite and PES
• Bronze pump housing
• 1-phase motor
• No additional motor protection is required
• UL and CSA approved

Grundfos UP 15-18 B5 Specifications:

• Liquid temperature range: 36 to 230 Degrees F
• Maximum operating pressure: 145 psi
• Flange standard: USA Sweat
• Type of connection: Bronze Sweat
• Pipe connection: 1/2"
• Pressure stage: 10
• Port-to-port length: 5"
• Number of poles: 2
• Max. power input: 86 watts
• Rated power: 1/25 HP
• Main frequency: 60 Hz
• Rated voltage: 115 V
• Current in speed 3: 0.74 AMP
• Capacitor size - run: 10 F/180 V
