Grundfos 22 GPM 1 HP SQE-Series Deep Well Submersible Pump (190' Rated Head) (2W - 200-240V)

Product Information:

• Grundfos 22SQE10-190 - SQE Series 3" Submersible Well Pump (2W - 200-240V): Ideal for use with 3" I.D. or larger boreholes

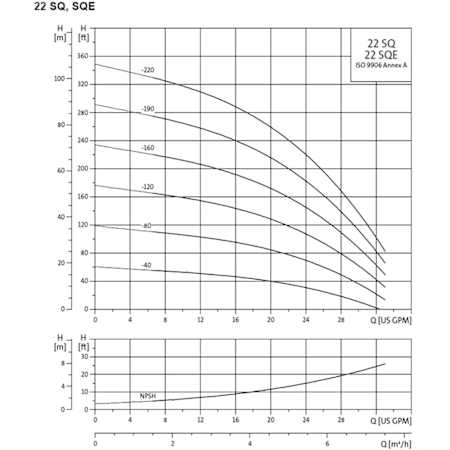

• Rated 22 GPM @ 190' Head Lift: Please see documents for sizing / pump curve information


• *Requires Grundfos CU 302 Constant Pressure Kit (Not Included) (Model 92817764)
  • Constantly adapts pump performance to meet the demand for water
  • Can provide constant water pressure from 40 -100 PSI
• 1 HP Stainless Steel Grundfos "Smart Motor" (2-Wire - 200-240V)
  • Variable-speed, electronically controlled, communicates with CU 301 status box
  • Highly-efficient Permanent-Magnet (PM) design with Thermal overload protection
• Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear and provides ability to use smaller gauge wire
• Dry-Running Protection: Helps extend pump life by preventing pump damage due to lack of water in well


• Highly-Efficient Stainless Steel Pump: Polyamide reinforced hydraulic pump components for more efficient energy use


• "Floating" Impellers with Tungsten Carbide/Ceramic Bearings: Allows for high wear resistance to sand which extends pump life


• Top-Bearing Upthrust Protection: Provides added protection to motor/pump during start-up


• Overvoltage and Undervoltage Protection: Prevents damage to the motor if voltage moves outside rated range


• Overload Protection and Overtemperature Protection
  • Reduces Motor RPM or turns off power to motor to prevent damage to motor
  • Built-in temperature sensor ensures optimum operating conditions for the motor
• Grundfos GO Remote Compatible (Sold Separately): Lets you configure, control and alter pump settings with your Android/IOS device


• 2-Year Warranty
