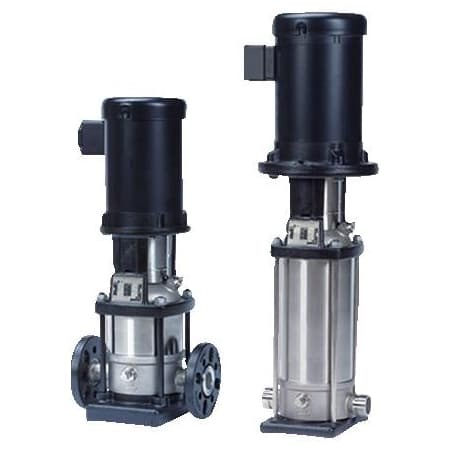

Grundfos CRN 56 APGE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Maximum Liquid Temperature of 248°F, a Rated Flow of 30.4 US GPM, a Rated Head of 148 Ft and Stainless Steel Construction

CRN 56 APGE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Maximum Liquid Temperature of 248°F, a Rated Flow of 30.4 US GPM, a Rated Head of 148 Ft and Stainless Steel Construction

CRN 56 APGE HQQE Vertical, non-self priming, multistage, inline, centrifugal pump for installation in pipe systems and mounting on a foundation. The pump has the following characteristics: Impellers, intermediate chambers and outer sleeve are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4401. Pump head cover and base are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4408. The shaft seal has assembly length according to DIN 24960. Power transmission is via cast iron split coupling. Pipe work connection is via PJE (Victaulic) flanges/couplings. The motor is a 3 phase AC motor.

Technical:

• Speed for pump data: 3452 rpm
• Rated flow: 30.4 US gpm
• Rated head: 148 ft
• Shaft seal: HQQE
• Approvals on nameplate: ANSI/NSF61

Material:

• Pump housing: Stainless steel
• Pump housing: DIN W.-Nr. 1.4408
• Pump housing: ASTM A 351 CF 8M
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4401
• Impeller: AISI 316

Installation:

• Maximum ambient temperature: 104 °F
• Max pressure at stated temperature: 363 psi / 250 °F
• Max pressure at stated temperature: 363 / -4 psi/°F
• Flange standard: PJE (Victaulic)
• Pipe connection: 1 11/16"
• Flange size for motor: 56C

Liquid:

• Liquid temperature range: -4 .. 248 °F

Electrical Data:

• Motor type: 90CC
• Number of poles: 2
• Rated power - P2: 2 HP
• Power (P2) required by pump: 2.01 HP
• Main frequency: 60 Hz
• Rated voltage: 3 x 208-230/460 V
• Service factor: 1,15
• Rated current: 5.70-5.40/2.70 A
• Starting current: 810-900 %
