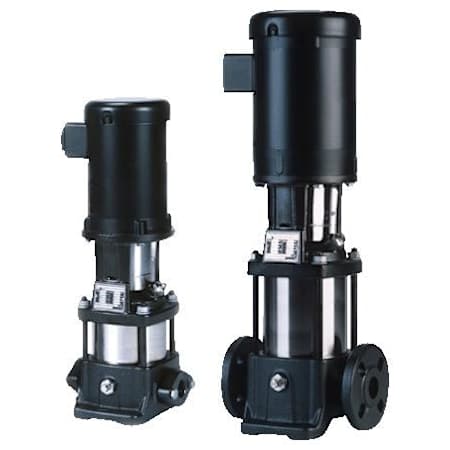

Grundfos CR 515 ABAE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 30.4 US GPM, a Rated Head of 362 Ft and Cast Iron Construction

CR 515 ABAE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 30.4 US GPM, a Rated Head of 362 Ft and Cast Iron Construction

CR 515 ABAE HQQE Vertical, non-self priming, multistage, inline, centrifugal pump for installation in pipe systems and mounting on a foundation. The pump has the following characteristics: Impellers and intermediate chambers are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4301. Pump head and base are made of Cast iron. The shaft seal has assembly length according to DIN 24960. Power transmission is via cast iron split coupling. Pipe work connection is via OVAL flanges.

Technical:

• Speed for pump data: 3461 rpm
• Rated flow: 30.4 US gpm
• Rated head: 362 ft
• Shaft seal: HQQE
• Approvals on nameplate: ANSI/NSF61

Material:

• Pump housing: Cast iron
• Pump housing: EN-JL1030
• Pump housing: ASTM 25 B
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Max pressure at stated temperature: 232 psi / 250 °F
• Max pressure at stated temperature: 232 / -4 psi/°F
• Flange standard: OVAL
• Pipe connection: 1 1/4" NPT
• Flange size for motor: 182TC

Liquid:

• Liquid temperature range: -4 .. 248 °F

Electrical Data:

• Power (P2) required by pump: 4.96 HP
