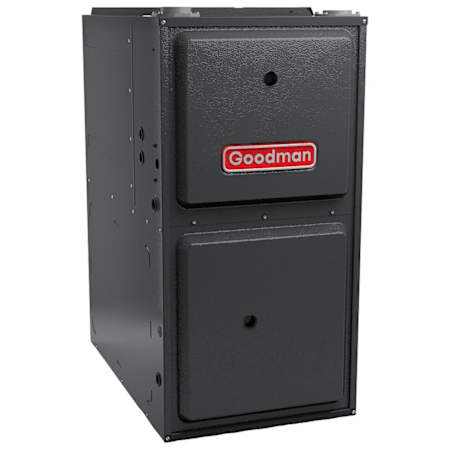

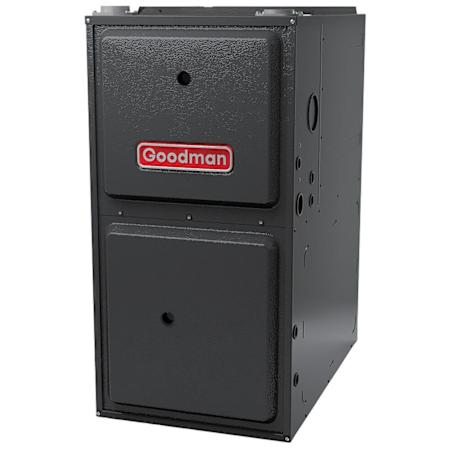

Goodman GM9S96 Series 40,000 BTU Single Stage Natural Gas Furnace - 96% AFUE

Goodman's GM9S96 furnaces feature high-quality construction and efficient operation at a great value. The GM9S96 multi-speed furnace uses a pair of steel heat exchangers to convert 96% of the energy used into comfort, Goodman's highest mark for a single-stage furnace. Instead of a standard multi-speed blower motor, the GM9S96 utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GM9S96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GM9S96.

Features:

Advanced Heat Exchanger Design
• The GM9S96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
Secondary Heat Exchanger
• This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
Quiet Comfort
• The blower, motor, and gas valve of the GM9S96 were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.
Venting Options
• The GM9S96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
Secure Cabinet
• All GM9S96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
Easy Integration
• The GM9S96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
Extended Warranty
• Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

General Information:

• Fuel Type: Natural Gas
• Heater Type: Furnace
• Vent Type: Direct Vent
• Stage: Single Stage
• Blower Motor Type: Electronically Commutated Motor (ECM)
• Airflow Orientation: Horizontal, Upflow

Performance:

• AFUE Rating 96%
• Heating BTU: 40,000
• High Fire Input: 40,000
• High Fire Output: 38,440
• NOx Emissions: Low NOx

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Frequency: 60 Hz
• Breaker Needs: 15 Amps

Dimensions:

• Height: 34-1/2"
• Width: 14"
• Depth: 28-3/4"
• Weight: 108 lbs

Product Assurance:

• Certifications:
  • AHRI
  • ETL
  • ISO
• AHRI Reference Number: 207349292
• Manufacturer Warranty: 10 Year Parts, Limited Lifetime Heat Exchanger
