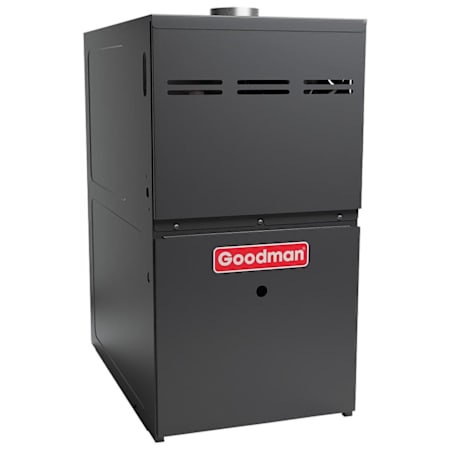

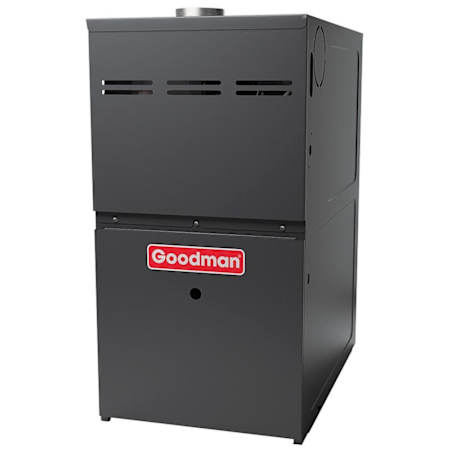

Goodman GM9C80 Series 120,000 BTU Two Stage Natural Gas Furnace - 80% AFUE

Goodman's GM9C80 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. The GM9C80 utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating and ensure that your energy dollars aren't being vented out of your home. Instead of a standard multi-speed blower motor, the GM9C80 utilizes an ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GM9C80 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GM9C80.

Features:

Advanced Heat Exchanger Design
• The GM9C80 furnace employs a reliable tubular heat exchanger design. Aluminized steel is used in construction for incredibly efficient heat transfer and wrinkle-bend technology for extraordinary durability.
Multi-Speed ECM Motor
• The GM9C80's energy efficient blower motor uses the lowest speed it can to deliver precise temperature control for your home while keeping utility bills to a minimum.
Quiet Comfort
• Goodman takes great pride in producing equipment that doesn't disrupt your home. The blower and gas valve of the GM9C80 were selected for their incredibly low sound levels.
Secure Cabinet
• All GM9C80 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is insulated to prevent heat loss and the return side of the cabinet is solid and airtight.
Self-Diagnostic Control Board
• The GM9C80 continuously monitors the system to ensure reliable operation, stores the last diagnostic codes in memory, and a flashing LED indicates condition for quick troubleshooting.
Extended Warranty
• Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

General Information:

• Fuel Type: Natural Gas
• Heater Type: Furnace
• Vent Type: Chimney
• Stage: Two Stage
• Blower Motor Type: Electronically Commutated Motor (ECM)
• Airflow Orientation: Horizontal, Upflow

Performance:

• AFUE Rating 80%
• Heating BTU: 120,000
• High Fire Input: 120,000
• High Fire Output: 96,000
• NOx Emissions: Standard

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Frequency: 60 Hz
• Breaker Needs: 20 Amps

Dimensions:

• Height: 33-3/8"
• Width: 24-1/2"
• Depth: 28"
• Weight: 124 lbs

Product Assurance:

• Certifications:
  • AHRI
  • ETL
  • ISO
• AHRI Reference Number: 207254765
• Manufacturer Warranty: 10 Year Parts, Limited Lifetime Heat Exchanger
