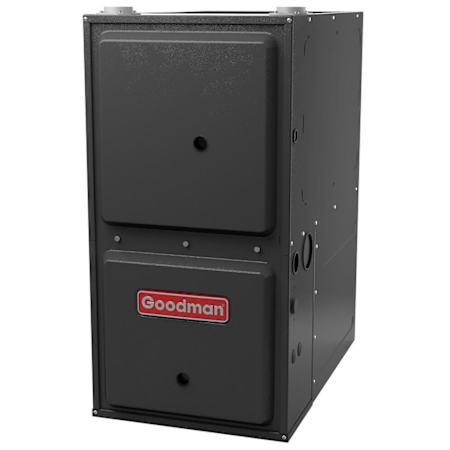

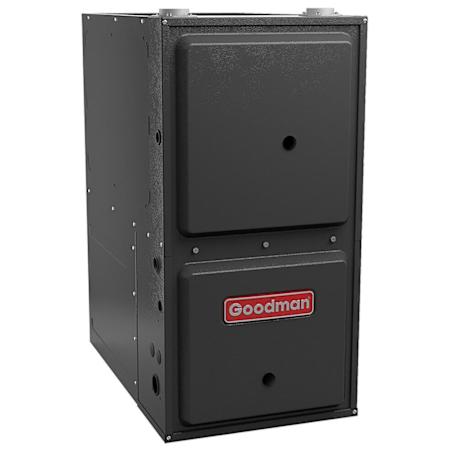

Goodman GC9C96 Series 80,000 BTU Two Stage Natural Gas Furnace - 96% AFUE

Goodman GC9C96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GC9C96 utilizes a 9-Speed ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GC9C96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GC9C96.

Features:

Advanced Heat Exchanger Design
• The GC9C96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
Secondary Heat Exchanger
• This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
Quiet Comfort
• The blower, motor, and gas valve of the GC9C96 were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.
Venting Options
• The GC9C96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
Secure Cabinet
• All GC9C96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
Easy Integration
• The GC9C96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
Extended Warranty
• Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.

General Information:

• Fuel Type: Natural Gas
• Heater Type: Furnace
• Vent Type: Direct Vent
• Stage: Two Stage
• Blower Motor Type: Electronically Commutated Motor (ECM)
• Airflow Orientation: Downflow, Horizontal

Performance:

• AFUE Rating 96%
• Heating BTU: 80,000
• High Fire Input: 80,000
• High Fire Output: 80,000
• NOx Emissions: Low NOx

Electrical Data:

• Voltage: 115V
• Electrical Phases: 1
• Frequency: 60 Hz
• Breaker Needs: 15 Amps

Dimensions:

• Height: 34-1/2"
• Width: 17-1/2"
• Depth: 28-3/4"
• Weight: 118 lbs

Product Assurance:

• Certifications:
  • AHRI
  • ETL
  • ISO
• AHRI Reference Number: 207349254
• Manufacturer Warranty: 10 Year Parts, Limited Lifetime Heat Exchanger
