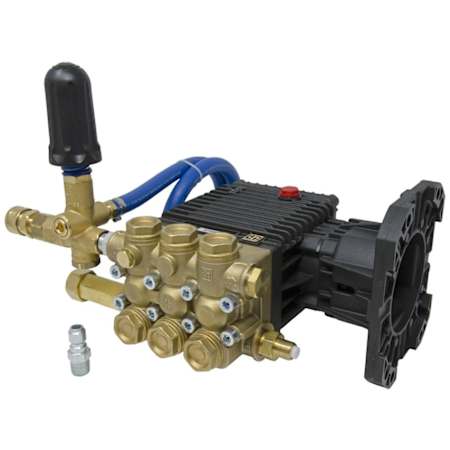

General Pump General Pump Fully Plumbed EZ4040G 4000 PSI 4.0 GPM (1" Shaft) Triplex Pressure Washer Pump

Product Information:

• Fully Plumbed EZ4040 Replacement Pump
  • Fully Plumbed are ready to go - 4 bolts off - 4 bolts on
  • Get a great high-quality replacement assembly for less than a repair
  • Comes with unloader, pressure relief valve, pressure washer hose plug, and garden hose inlet w/ filter


• 1-Inch Hollow Shaft w/ Gas Flange: Quick coupler and plug included


• Offers Maximum 4000 PSI & 4 GPM
  • Ideal for 9 to 13 HP engines with 1" hollow engine shafts
  • Premium roller bearing
  • Provides a smooth liquid flow at 3400 RPM
  • Unitized stainless steel inlet and discharge valves


• Pulsar EZ Unloader
  • Adjust the pressure to suit the task at hand
  • Eliminates back pressure when pulling a manual start engine


• External Bypass Hose
  • Carries water to the inlet when the unloader valve opens
  • Adds safety if water circulates in pump for too long and quickly heats to dangerous temperatures


• Die-Cast, Anodized Aluminum Oil-Bath Crankcase
  • One-piece plunger design eliminates water entering crankcase
  • 5% reduction in crankcase load compared to standard 3,000 PSI, 15 mm pumps


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restock fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pumps should not be allowed to operate in bypass mode for more than 1 minute


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Consumer

Dimensions:

• Height: 10-3/16"
• Width: 9-3/16"
• Length: 12-11/16"
• Product Weight: 20 lbs
• Outflow Connection: 3/8" Snap Coupler (Male)
