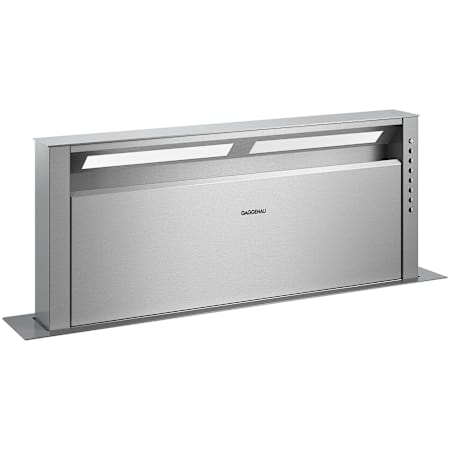

Gaggenau 400 Series 36 Inch Wide Island Range Hood with 3 Speeds and Push Button Controls

Features:

• Keeps your kitchen free of cooking fumes and odors
• Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
• lighting illuminates the cooking area
• Push button controls allow you to easily set the power level of your range hood
• 3 available speeds provide just the right amount of ventilation

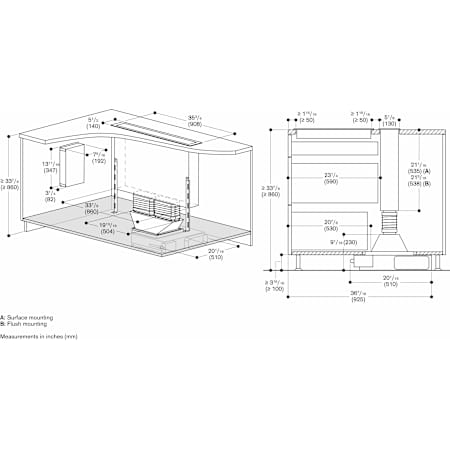

• For surface mounting with a visible edge or for flush mounting

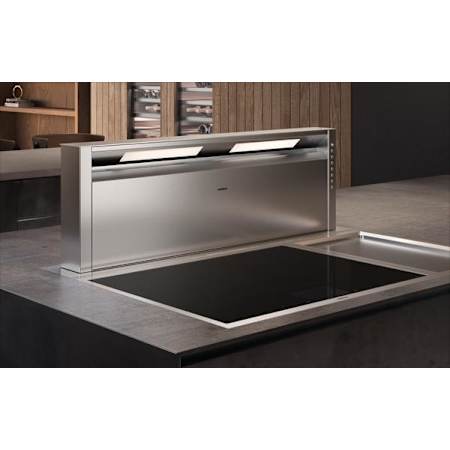

• When not in use it can be completely lowered into the worktop blends elegantly into worktop

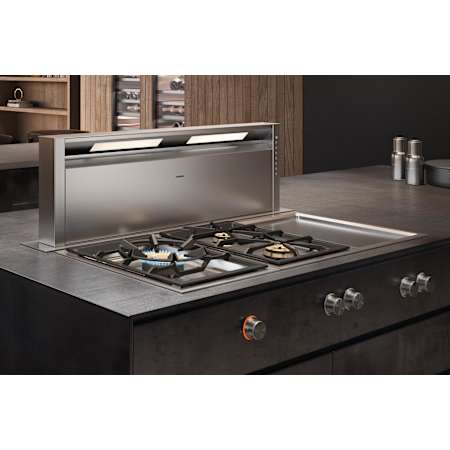

• Downdraft for combination with all Gaggenau cooktops, completely retractable when not in use
• Can be combined perfectly with all Vario cooktops 400 series
• Dimmable LED light for optimum illumination of the entire cooktop
• Precision crafted 3mm stainless steel frame
• For surface-mount installation with a visible edge or for flush installation

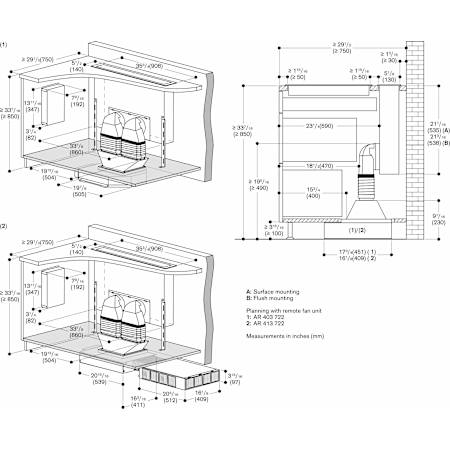

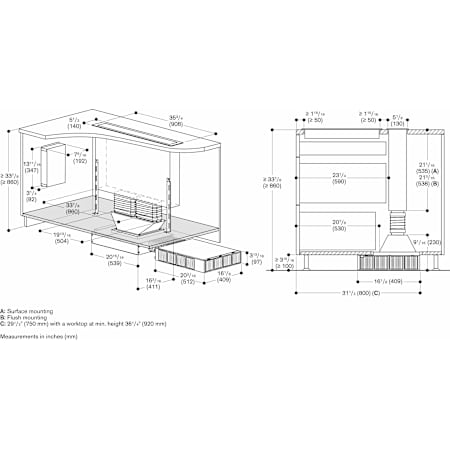

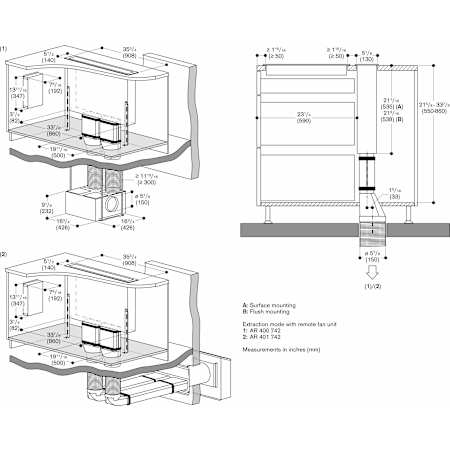

• For operation with 400 series AR400742 inline, AR401742 remote or AR413722 and AR410710 recirculation blowers

• Noise level depends on the built-in situation
• 3 electronically controlled power levels and 1 intensive mode
• Interval ventilation, 6 min
• Run-on function, 6 min
• Grease filter saturation indicator
• 2 large-scale metal grease filters included, easy to remove and dishwasher-safe
• Grease drip trays, easy to remove and dishwasher-safe
• Neutral white surface LED light (3600 K), continuously dimmable
• Lamp output 4 x LED 6medium power 5W stripe
• Illuminance 200 lx

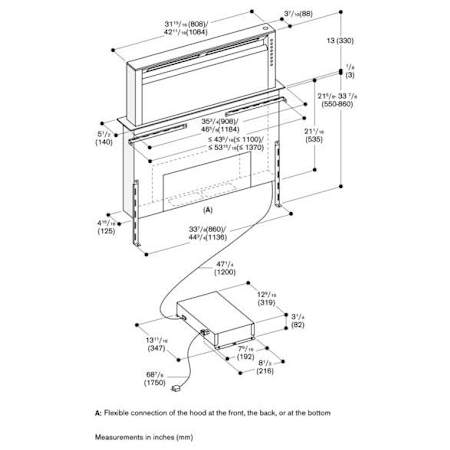

• Flexible connection options based upon blower selection: at the bottom, at the front or at the back
• In all the options, it is possible to have space for drawers in front of the retractable downdraft

• Consumption data is referred to a configuration with the recirculation blower AR 410 710

• Combinable with all cooktops Vario 400 series and 200 series
• Maximum cooktops width: 36" (90 cm)
• Depending on the type of installation, the corresponding accessories must be ordered separately
• Air recirculation is not recommended in combination with Vario electric grill
• Operation of Vario cooking appliances only possible without appliance cover
• Max output of cooktops 60,000 BTU
• The retractable downdraft must have its own countertop cut-out and may not be placed directly against the cooktop(s)
• The bearing capacity and stability in the case of thin countertops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads
• The remaining surface of the worktop (min 50 mm) between the cut-outs must be reinforced with a support. It is recommended to use furniture support AA 409 401/431

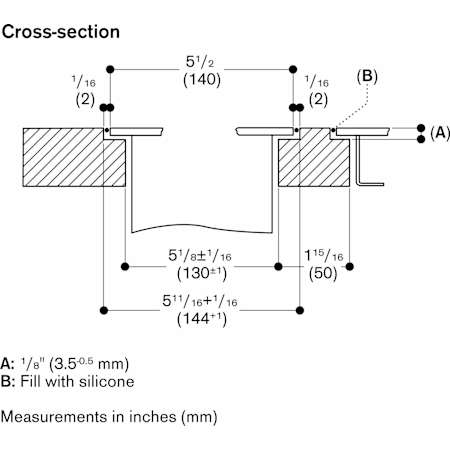

• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer
• Depending on the type of installation, ovens can be combined with the retractable downdraft
• The electronic control unit for the retractable downdraft should be accessible and be secured to a panel of the cabinet that avoids any risk of flooding

• Total rating: 65 W
• 100 - 120 V / 60 Hz
• Total amps: 10 A
• Connecting cable 60" with plug

Specifications:

• Nominal Width: 36"
• Width: 35-3/4"
• Height: 21-1/4"
• Depth: 5-1/2"
• Duct Size: 6" Round
