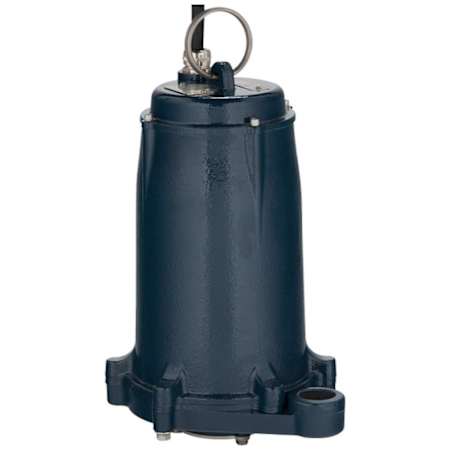

Franklin Electric IGP-M231-15 - 2 HP Cast Iron Grinder Pump with Brass Impeller and 15' Leads (Non-Automatic - 230V)

Features:

• Non-Automatic Submersible Cast Iron Grinder Pump (230V)


• FPS - IGP-M231-15 - IGP-M Series Grinder Pump 208-230V
  • For residential/light commercial apps. w/ high head conditions
  • For the toughest residential and commercial wastewater applications


• Epoxy Powder Coated Cast Iron Construction: Provides up to 130' Max Head


• Epoxy Powder Coated Cast Iron Construction: Provides excellent corrosion-resistance and durability


• Non-Automatic Design (Control Box Required) 513374 Floats 950266
  • Provides excellent corrosion-resistance and durability
  • Makes maintenance and service an easy task


• Non-Automatic Design (Control Box Required): Externally-mounted start components*


• 2 HP Single Phase, Capacitor Start/Run 230V Motor
  • Built-in overload, over-current and over-temperature protection
  • Makes maintenance and service an easy task


• Hardened Stainless Steel, Patented Cutter Design


• 2 HP 3450 RPM Single Phase Motor (208-230V)
  • Tight cutting clearances for better shearing action
  • Built-in overload, over-current and over-temperature protection


• Hardened Stainless Steel, Patented Cutter Design


• Brass, 7-Vane, Angled Face Impeller
  • Tight cutting clearances for superior grinding at 414,000 cuts per minute
  • Balanced, non-clogging design for extended pump life


• Nitrile Mechanical Shaft Seal w/ Carbon and Ceramic Faces


• Brass, 7-Vane, Angled Face Impeller
  • Assures maximum protection for extended pump life
  • Balanced, non-clogging design for extended pump life


• Carbon and Ceramic Mechanical Seal


• Cold Rolled Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth and quiet operation
  • Assures maximum protection for extended pump life


• Stainless Steel Shaft w/ Upper/Lower Ball Bearings


• *Note - Minimum 5' Head and 130' Max Head*: Minimizes friction while providing smooth and quiet operation


• UL and CSA Listed


• 1-1/4" FNPT Discharge: Vertical discharge design for easy installation


• 15' Power Cord


• 2-Year Limited Warranty
