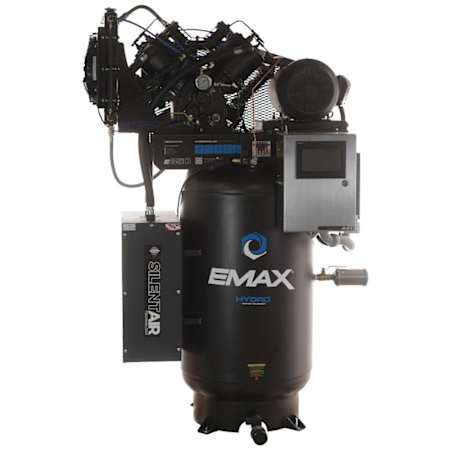

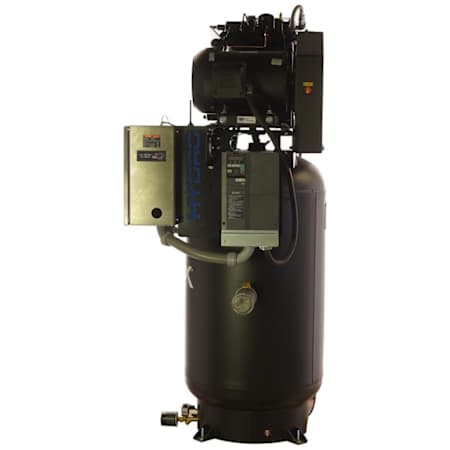

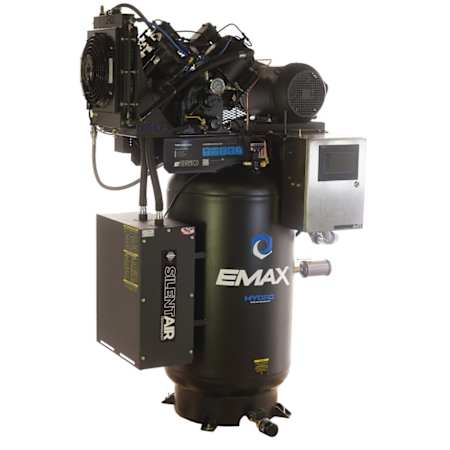

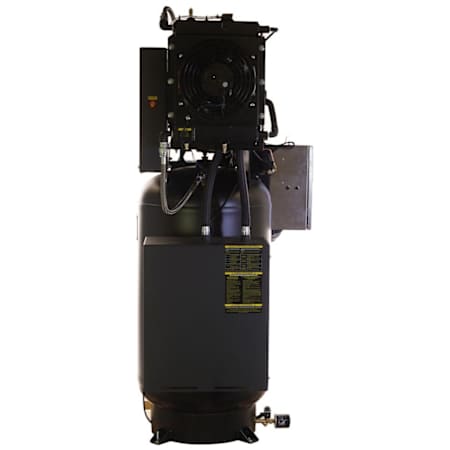

EMAX 10 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Reciprocating Air Compressor with Wi-Fi

Product Information:

• HYDRO™ Water Cooled Silent Air™ & Smart Air™ Variable Compressor w/ Wi-Fi
  • Built-in single phase and 3 phase converter
  • True 100% duty rating for continuous operation 24/7/365 days; Low 63 dBA
  • Replaces ALL rotary screw, scroll, pistons with 3 patented replacement air technologies

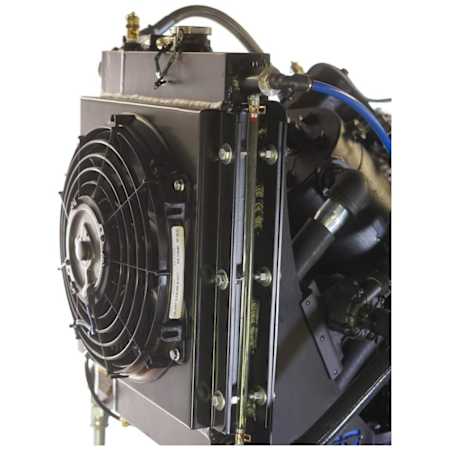

• 10-HP Industrial Grade Motor & Split Bar Radiator
  • Belt tension adjuster for fast, easy "one turn" design
  • Low RPM design extends useful life; motors run much cooler than 3450 RPM
  • Can be installed in or outside garages, farm shops, and industrial applications

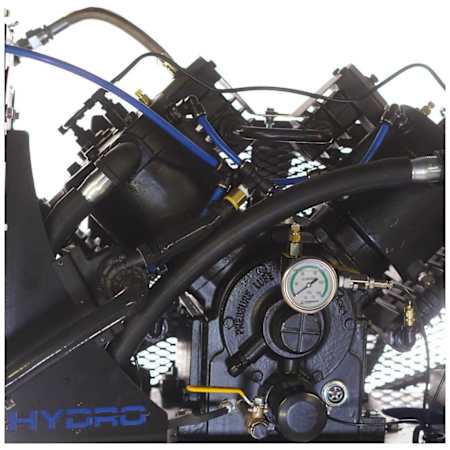

• Ultra Quiet Pressure Lubricated Pump w/ HYDRO™ Cooling
  • Designed for up to 80,000 hours of commercial or industrial
  • Integrated aftercooler and low oil shutdown for constant protection
  • HYDRO™ cools down air temperature and reduces moisture by 50%
  • Allows for water to reach every crevice of the head to absorb heat


• Variable Speed Programmable Mitsubishi Drive
  • Electronic drive sensors monitor air demand to adjust pump automatically
  • Soft starts at low RPMs reduce amp draw; Energy savings up to 90% in loading mode
  • Eliminates virtually all energy waste by only producing required air for specific applications


• Silent Air™ 5-Stage Filtration System & Smart Air™ Technology
  • Reduced noise levels up to 65% through noise cancellation plates
  • High performance air filters provide 250% more air filtration versus all other brands
  • Reduces high upfront cost & annual maintenance; Estimated 50% lower operating cost

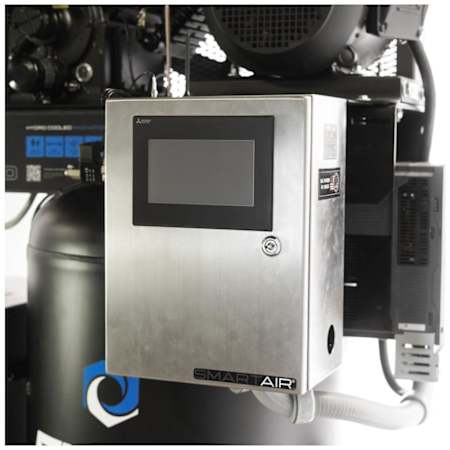

• Smart Digital Programmable Logic Controller (PLC)
  • Displays kW energy savings while unit is running
  • Timed start/stops each day of the week and maintenance alarms
  • Enables manual and remote pressure adjustments from 70 to 175 PSI
  • Alarms include low oil shutdown, motor overload shutdown, loss of phase shutdown


• Built-In WiFi & Network Enabled
  • For remote monitoring 24-7 and 70+ mobile commands
  • Pushes maintenance and preventative failure notification (optional)


• 80 Gallon ASME Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V automatic tank drain with dual timers eliminates daily maintenance


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty: Please See Warranty Sheet For More Information & Manuals Section For Additional Videos

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 76"
• Width: 49"
• Length: 32"
• Product Weight: 1050 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 38
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• dB Rating: 63
• Voltage: 460V
• Voltage: 460V
