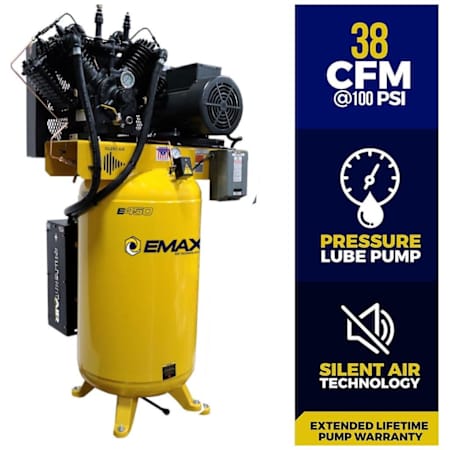

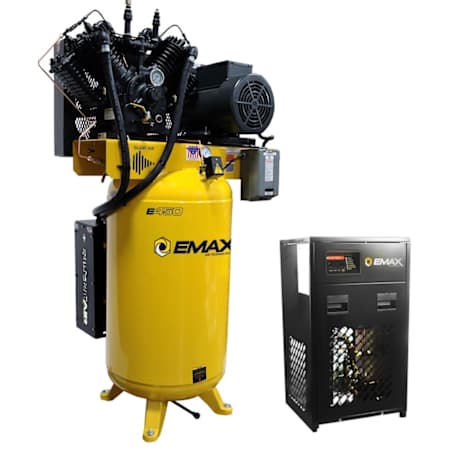

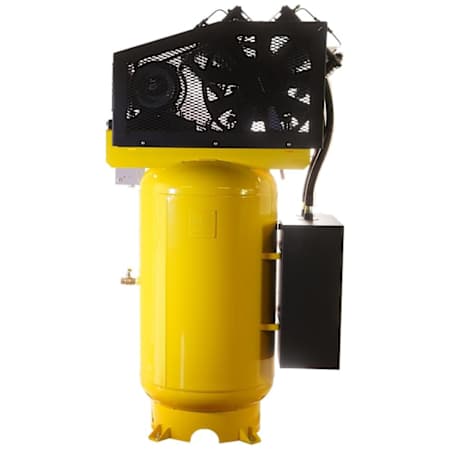

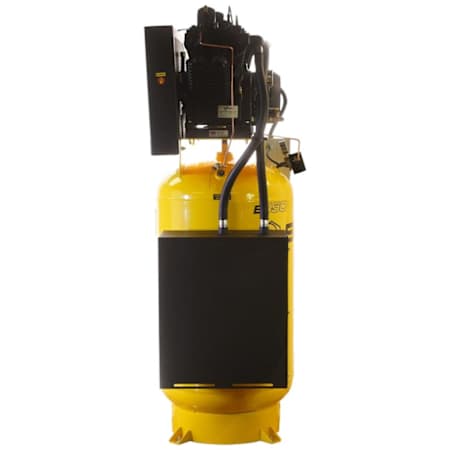

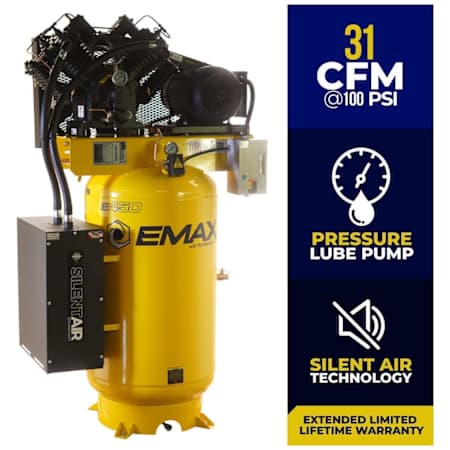

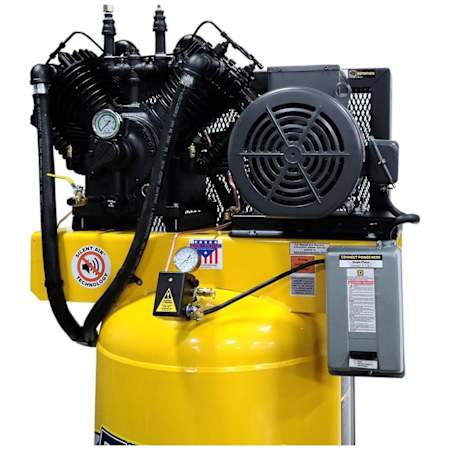

EMAX 10 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor with Dryer

Product Information:

• 10 HP Industrial Grade 1750 RPM Motor
  • Low RPM design extends useful life; motors run much cooler than 3450 RPM
  • Low harmonic distortion, provides much higher torque in cold weather starting and require less electricity under start

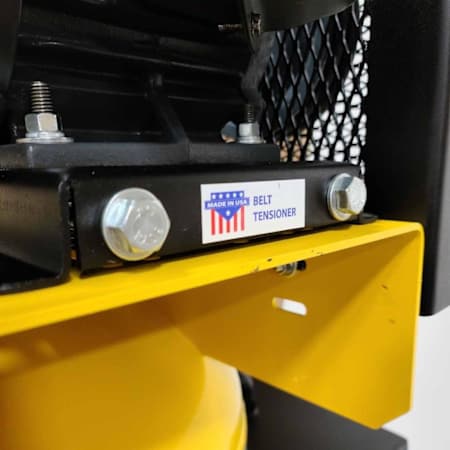

  • Belt tension adjuster for fast, easy "one turn" design


• Pressure Lubricated Cast Iron Pump w/ Built-In Inter-Cooler & After-Cooler
  • 38 CFM @ 100 PSI; 34 CFM @ 175 PSI (MAX)
  • Designed for up to 70,000 hours of commercial or industrial
  • Dual control design allows for automatic or continuous run for all applications


• Cool-Tek - The Coolest Running Compressors In The Industry: Air Stream Technology provides 20% lower operating temperature, reduces moisture build up & extends pump life


• Ram-Tek - Solid Steel, Heavy Gauge Rods: All steel connecting rods with replaceable rod bearing inserts can be rebuilt for maximum durability

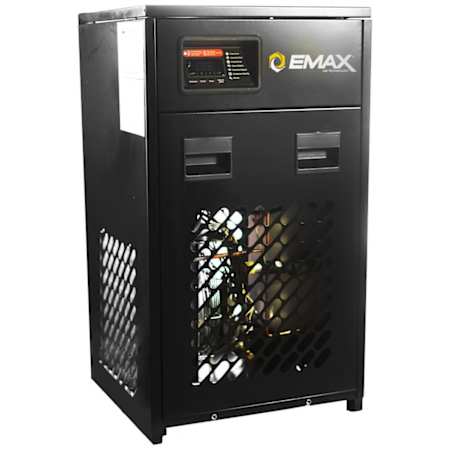

• EMAX EDRCF1150058 58 CFM Refrigerated Air Dryer w/ Inner Cooler (115V)
  • Air is filtered of all solid particles 0.01 micron and larger
  • Energy efficient with coalescing filter built in auto drain
  • Keep water, oil, and dirt out of your compressed air; drier air prolongs the life of your machinery & tools

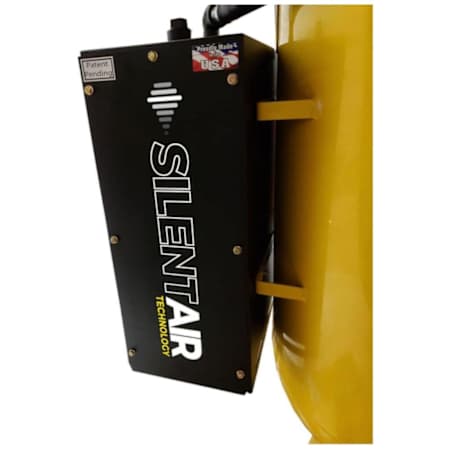

• Patented Silent Air Technology
  • Reduces dBA readings by up to 20%
  • Piston intake noise is trapped and dissipated within the silencer structure


• 80 Gallon ASME Receiver With Auto Tank Drain
  • Includes isolation pads to lessen vibration and noise
  • 110V automatic tank drain with dual timers eliminates daily maintenance
  • Prewired condor starter and pressure switch built into one

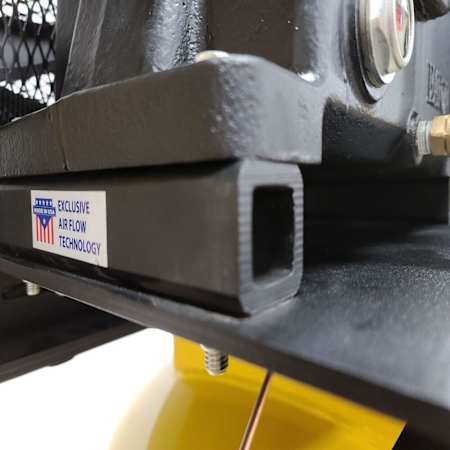

• Raised Pump Mounting Platform (ESP Models Only)
  • Pump is raised approximately 2-inches off the mounting base plate
  • Allows 100% constant flow of cool air from flyweel fan around pump crankcase
  • Ensures cooler pump oil temperatures, helps lubricate pump, keeps heat off pistons & connecting rods


• 1 Year Standard, 5 Year Extended, Extended Limited Lifetime Pump Warranty


• Please See Warranty Sheet For More Information

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 72"
• Width: 42"
• Length: 38"
• Product Weight: 810 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Full Pressure Lubrication
• Lubrication Type: Oil Lubricated
• CFM: 38
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 40A
• Voltage: 208, 230V
• Voltage: 208, 230V
