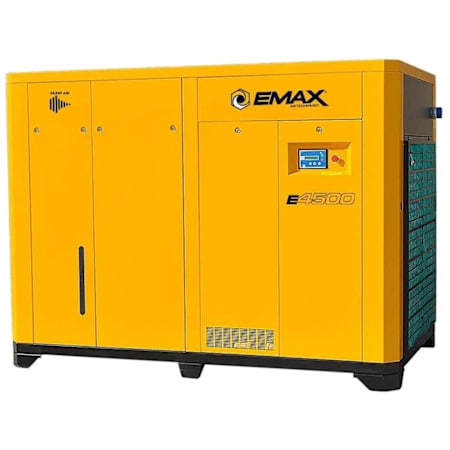

EMAX 200 HP 145 Max PSI Stationary Electric (460 Volt 3 Phase) Variable Speed Rotary Air Compressor

Product Information:

• This Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Drive-Tek: Variable Speed Drive reduces energy demand up to 33%


• Standard Y-Delta Soft Start Motor: Reduced energy demand & amp draw on start up


• PLC Controller- Advanced Maintenance Intelligence Monitor
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Allows convenient remote start/stop


• Spin-Tek
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove or install- saving time & money


• Precision Engineered Rotary Air End
  • Highly efficient design provides maximum discharge
  • Rated up to 882.5 CFM at 100 PSI (145 PSI maximum)


• Heavy-Duty Sound Attenuated Cabinet
  • Provides lower decibel operation than a typical rotary screw unit
  • Rated at 87 dBA; 3-1/2" NPT air outlet


• Designed For Use With Stationary Air Receiver (Not Included): Air receivers can be purchased separately to meet your specific needs


• 1 Year Limited Standard Factory Warranty: 10 years on air-end pump and motor with purchase extended warranty service kit


• Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force: SERVICEKIT027 Maintenance Kit required to validate warranty coverage

Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 75"
• Width: 63"
• Length: 105"
• Product Weight: 6358 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 3-1/2"

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 883
• Drive Type: Direct Drive

Engine and Motor Specifications:

• Horsepower: 200 HP
• Voltage: 460V
