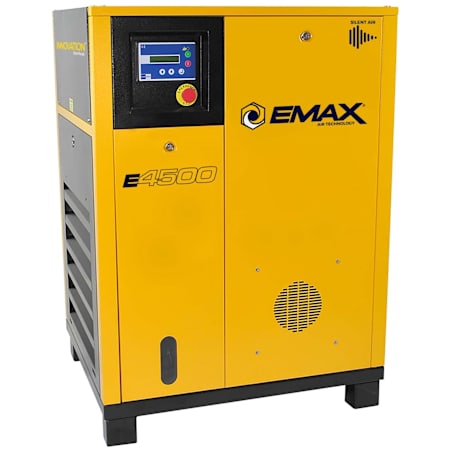

EMAX 15 HP 150 Max PSI Stationary Electric (230 Volt 1 Phase) Variable Speed Rotary Air Compressor

Product Information:

• Rotary Screw Air System: 208/230V 1-phase drives 1750 RPM motor


• Drive-Tek™ Design: Variable Speed Drive reduces energy demand up to 33%


• VFD Soft Start Motor: Provides reduced energy demand & amp draw on start up


• PLC Controller
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop


• Spin-Tek™ Design
  • Unique easy access oil filters & air/oil separators
  • Requires no tools to remove/install saving time and money


• Precision Engineered Rotary Air End: Highly efficient design provides maximum discharge


• Heavy Duty Sound Attenuated Cabinet: Provides lower 67 dBA operation than a typical rotary screw


• Designed For Use With Stationary Air Receiver (Not Included)
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and 5 year on motor with purchase extended warranty service kit


• Must-Have Maintenance Kit To Keep Your EMAX Warranty In Force: SKIT003WB Maintenance Kit required to validate warranty coverage

Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 50"
• Width: 36"
• Length: 32"
• Product Weight: 788 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 1"

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 62
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Voltage: 230V
