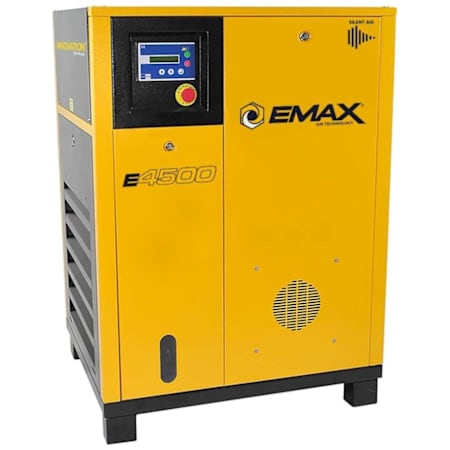

EMAX 10 HP 150 Max PSI Stationary Electric (460 Volt) Variable Speed Rotary Air Compressor

Product Information:

• E4500 Series Variable Speed Rotary Screw Air System
  • 460V 3-phase power drives the 1750 RPM motor
  • Saves money; great for industrial/manufacturing applications


• Standard Y/Delta Soft Start Motor: Provides reduced energy demand & amp draw on start up


• Advanced PLC Controller
  • Monitors maintenance, temperature, oil level, filtration & hours
  • Also monitors remote start/stop


• Spin-Tek™ Design
  • Unique easy access oil filters & air/oil separators
  • No special tools to remove/install saving time and money


• Precision Engineered Rotary Air End: Highly efficient design provides maximum discharge


• Drive-Tek™ Design: Reduces energy demand up to 33%


• Ultra Quiet Operation: Provides lower 64 dBA operation than a typical rotary screw


• Designed For Use With Stationary Air Receiver (Not Included)
  • 1 Year Limited Standard Factory Warranty
  • 10 years on air-end pump and motor with purchase extended warranty service kit



Specifications:

• Certifications: UL
• Fuel Type: Electric
• Height: 43"
• Width: 24"
• Length: 34"
• Product Weight: 562 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"

Pump Specifications:

• Lubrication Type: Oil Lubricated
• CFM: 45
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Voltage: 460V
