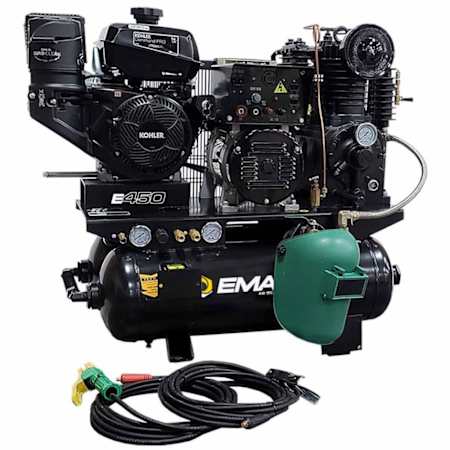

EMAX 14 HP 20 Gal 175 Max PSI Two-Stage Portable Gas Reciprocating Air Compressor with Kohler Engine
Model: EGES14020T|Item: bci5120647
$6,073.40
5 In Stock
Details
Product Information:
- EMAX 3-In-1 Piston Air Compressor / Generator / Welder: For commercial & industrial applications on a jobsite or on the go
- 5 HP Two-Stage Cast Iron Piston Air Compressor Pump
- Pressure-lubricated designed provides added protection
- Industrial disc valves for increased life & simple maintenance
- Pump takes slightly under 1 quart of oil
- 5000 Watt (6000 Watt Surge) Generator
- Great for providing power on the job
- (2) 120V 20-Amp Outlets & (1) 120/240V 30-Amp Twistlock Outlet
- 190-Amp DC Stick Welder: Standard 25' leads for ease of use
- 14 HP Kohler Command Pro Engine w/ Electric Start*
- Forged-steel crankshaft & cast-iron cylinder liner
- Quad-Clean™ all-season four-stage cyclonic air filter
- 20-Gallon Air Storage: Twin 10-Gallon ASME storage tanks
- Also Includes
- Built-in regulator, Liquid filled gauges & Quick disconnect
- (2) 1/4" Air Fittings for air hoses (Air Hoses Not Included)
- 5-Year Parts Warranty
- *Note - Includes Starting Battery
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 38"
- Width: 42"
- Length: 34"
- Product Weight: 780 lbs
- Warranty: 5 Year Commercial and 5 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1"
- Tank Size: 20
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 17
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Kohler
- Horsepower: 14 HP
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 17 |
Height | 38 in. |
Length | 34 in. |
Product Weight | 780 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 17 |
Height | 38 in. |
Length | 34 in. |
Product Weight | 780 lbs. |
Width | 42 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Kohler |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 20 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Kohler |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 1" |
Tank Size | 20 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 14 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 14 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 5 Year Commercial, 5 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 5 Year Commercial, 5 Year Residential |
