The EMAX EGES1330V4 has been discontinued
** See similar or replacement items below **
Item # bci5120844

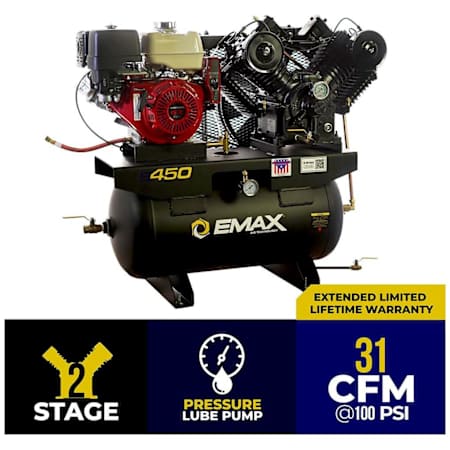

EMAX 13 HP 30 Gal 175 Max PSI Two-Stage Truck Mount Gas Reciprocating Air Compressor with Electric Start Honda GX Engine
Model: EGES1330V4|Item: bci5120844
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Product Information:
- 13 HP Honda GX Engine w/ Electric Start
- 4 cylinder design provides excellent torque & fuel efficiency
- 1 gallon fuel tank lets you work longer between fill-ups
- Battery and cables not included; must be purchased separately
- Low 640 RPM Pump: Solid cast iron construction extends pump life up to 70,000 hours
- Flow-Tek Concentric Disc Valves: Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek Cool Running Compressor
- 35% lower operating temperature
- Reduces moisture build-up & extends pump life
- All-Steel rebuildable Connecting Rods w/ Disc Valves: Easy maintenance & extended durability
- "One Turn" Belt Adjuster
- Fast & easy maintenance
- Reduces vibration & extends belt life
- 30 Gallon Air Receiver
- Powder coated to resist rust & corrosion
- 5 year factory warranty on pump & tank; 2 years on other components
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Gas
- Height: 43"
- Width: 27"
- Length: 55"
- Product Weight: 595 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 30
Pump Specifications:
- Oil System Type: Full Pressure Lubrication
- Lubrication Type: Oil Lubricated
- CFM: 31
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Honda GX
- Horsepower: 13 HP
Dimensions and Measurements
CFM | 31 |
Height | 43 in. |
Length | 55 in. |
Product Weight | 595 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 31 |
Height | 43 in. |
Length | 55 in. |
Product Weight | 595 lbs. |
Width | 27 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil System Type | Full Pressure Lubrication |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
