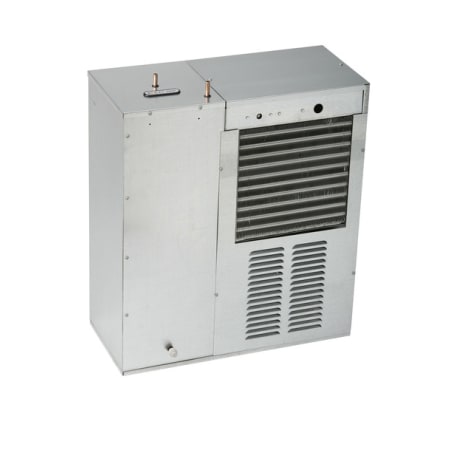

Elkay 19 GPH Remote Water Chiller with 220V/60Hz
Model: ER193|Item: bci1149944
$2,403.44
Finish: Galvanized Steel -
Special Order
Details
19 GPH Remote Water Chiller with 220V/60Hz
Remote type, electric refrigerated, water chiller unit. Chilling capacity of 19 gallons per hour of 50°F drinking water, based upon 80°F inlet water and 90°F ambient. Compact, highly efficient water chiller units are designed for use with any drinking fountain. Also connects to a bubbler, glass filler or cold water dispenser. Converts a fountain into a water cooler. Installs directly under fountain or other application, or may be located in a service area to serve up to three remote outlets (within 15 feet of chiller recommended). Also recommended for photo-processing, medical or experimental laboratories and a pre-cooler for beverage dispensing.
- 115 Voltage
- 60 Hertz
- 9.2 Full Load Amperage
- NSF Code Compliance
Manufacturer Resources
Specification SheetDimensions and Measurements
Depth | 10.25 in. |
Flow Rate (GPM) | 0.32 |
Height | 27 in. |
Inlet Diameter | 0.38 in. |
Outlet Diameter | 0.375 in. |
Width | 23 in. |
Dimensions and Measurements
Depth | 10.25 in. |
Flow Rate (GPM) | 0.32 |
Height | 27 in. |
Inlet Diameter | 0.38 in. |
Outlet Diameter | 0.375 in. |
Width | 23 in. |
Electrical and Operational Information
Amperage | 4.6 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 220 |
Wattage | 735 |
Electrical and Operational Information
Amperage | 4.6 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Voltage | 220 |
Wattage | 735 |
Warranty and Product Information
Certifications | NSF |
Low Lead Compliant | Yes |
Warranty and Product Information
Certifications | NSF |
Low Lead Compliant | Yes |
