Elco 6" 75W Single Light Low-Voltage Architectural Housing with 277V Magnetic Transformer

Elco ELH7LV-277 6" 75W Single Light Low-Voltage Architectural Housing with 277V Magnetic Transformer

Elco meets your needs for value and performance in low-voltage recessed lighting. Their design begins with the highest quality low-voltage transformers on the market. Choose from their diverse selection of low-voltage housings and trims that feature an impressive variety of tilt-adjustable options (0° to 90°).

Features:

• 75W magnetic transformer
• Integral thermal protector guards against improper lamping
• Pre-wired junction box provided with 0.5" and 0.75" knockouts
• Maximum (8) No. 12 AWG branch-circuit conductors (4 in, 4 out)
• Junction box provided with removable access plates
• Hanger bars not included (order CH26 or FB27 hanger bars or use 0.5" EMT pipe)
• Magnetic ballast

Specifications:

• Lamp: 12V 75W MR16 or PAR36
• Ceiling cutout: 6.5"

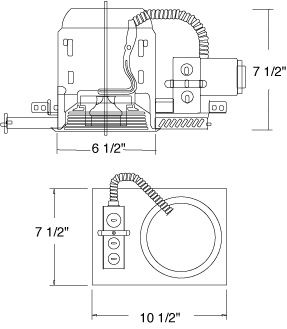

• Dimensions: 7.5"H x 10.5"D x 7.5"W
• UL damp location listed
• UL feed-through listed
• Compatible with the following Elco trims: EL2510, EL2511, EL2512, EL2516, EL2517, EL2518, EL2521, EL2525, EL2529, EL2530, EL2531, EL2533, EL2545, EL2550, EL2552, EL2553, EL2568, EL2575, EL2576, EL2579, EL2587, EL2588, EL2589, EL2597
