Product Information:

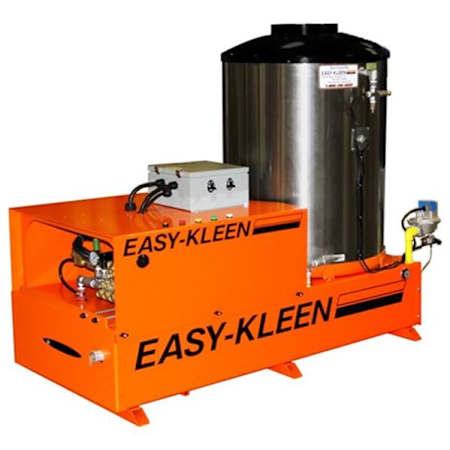

• 20-HP Techtop Electric-Powered Pressure Washer With Propane-Fueled Water Heater: Requires 208 volt, 3-phase power


• Quick Kleen 510,000 BTU Burner System (Must Be Vented Properly If Used Indoors)
  • Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO
  • Adjustable thermostat for efficiency, dependability & serviceability


• NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents: Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow


• Tip-Ahead Shroud With Integrated Belt Guard
  • Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access
  • Belt guard is integrated into the design of the shroud for maximum serviceability & safety


• 20-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor: High efficiency motor equipped with 1.25 service factor to meet demand


• General Pump Triplex Plunger Pump With Auto-Stop: Produces up to 5 GPM at 5000 PSI; runs cooler so it lasts longer


• Belt Drive With Torsion Bar Spring-Loaded Belt Tensioner: Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud


• Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame: Powder-coated finish helps protect against rust & corrosion


• Also Included:: Gun & wand assembly, 50 feet of high pressure hose, high pressure chemical injection, 5 nozzles & poly float tank

Specifications:

• Grade: Commercial
• Water Temperature: Hot
• Flow Rate: 5 GPM
• Maximum Water Pressure: 5000 PSI
• Frame Type: Stationary
• CARB Approved
• Warranty: 1 Year Commercial, 1 Year Consumer, 5 Year Commercial Pump, and 5 Year Consumer Pump

Dimensions:

• Height: 66"
• Width: 38"
• Length: 77"
• Product Weight: 1747 lbs
• Hose Length: 50"
• Hose Diameter: 3/8"

Engine and Motor Specifications:

• Horsepower: 20 HP
• Motor: Continuous Duty
• Voltage: 208 Volts
• Electrical Phases: 3-Phase
• Fuel Type: Electric
• Burner Fuel Type: Liquid Propane
