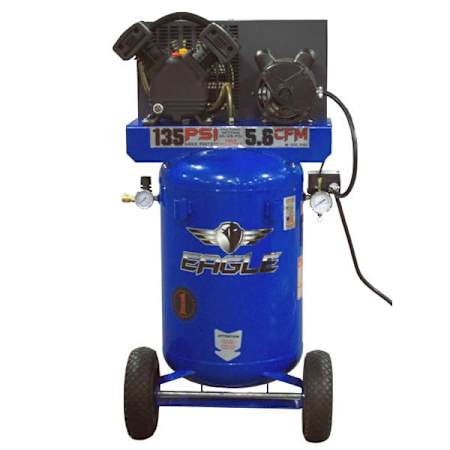

Eagle 3 HP 24 Gal 135 Max PSI Single-Stage Portable Electric (120, 240 Volt 1 Phase) Reciprocating Air Compressor
Model: P3124V1-CC|Item: bci5120706
$998.06
20 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 1 to 2 business days
-Details
Product Information:
- Rugged Compressor With Cast Iron Cylinders
- Able to work hard and last a long time
- Pump is rated to 135 PSI; 5.6 CFM @ 90 PSI
- Pressure gauge is factory set to a MAX of 125PSI
- "V" Design Minimizes Vibration: Improves cooling and extends compressor life
- Individual & Removable Cylinders: For smoother and cooler operation
- 3-HP Thermally Protected Motor: Comes wired for 115V-1 power; can be changed to 230V-1
- 24 Gallon Air Tank: Rated to 150 PSI (air tank only rating)
- Sturdy Pneumatic Tires: Easy Handling & manuverability
- Efficient Heat Removal From Pulley-Fan: For cooler running and longer life
- Sturdy Metal Belt Guard: Protects you and the belt during operation & transport
- Outlet Valve & Regulator Included
- Easy view oil sight glass makes maintenance simple
- 1/4" outlet quick connect included
Specifications:
- Certifications: CSA
- Fuel Type: Electric
- Height: 45"
- Width: 17"
- Length: 25"
- Product Weight: 153 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 24
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 6
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3 HP
- Voltage: 120, 240V
- Voltage: 120, 240V
Dimensions and Measurements
CFM | 5.6 |
Height | 45 in. |
Length | 25 in. |
Product Weight | 153 lbs. |
Width | 17 in. |
Dimensions and Measurements
CFM | 5.6 |
Height | 45 in. |
Length | 25 in. |
Product Weight | 153 lbs. |
Width | 17 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 24 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Portable |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 24 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120, 240 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 3 |
Maximum Operating Pressure (PSI) | 135 |
Stages | Single-Stage |
Voltage | 120, 240 |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | CSA |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
