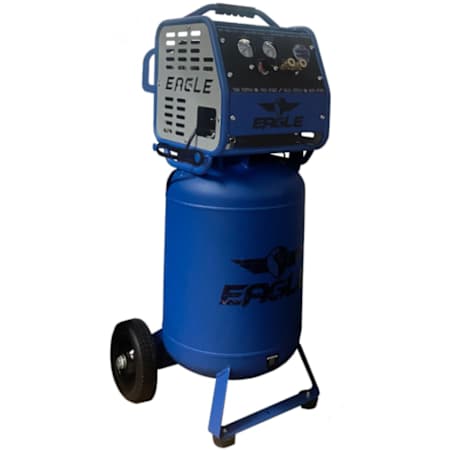

Eagle 2 HP 20 Gal 125 Max PSI Single-Stage Portable Electric (115 Volt) Reciprocating Air Compressor
Model: EA-6500|Item: bci5120824
$901.94
55 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse Today, February 16th
-Details
Product Information:
- Silent Series
- Rated at 53 dB from 25 feet away; softer than most conversations
- Life expectancy more than 4 times longer than most oil-free air compressors
- 2-HP Running & 2.5-HP (Peak) Motor: Draws only 14 amps, works on most household 115V outlets
- Oil-Free Double Piston Pump System
- Produces 6 CFM at 90 PSI; 7.9 CFM at 40 PSI with a 50% duty cycle
- Oil-free system requires no pump maintenance
- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Two 1/4" air hose quick connectors for fast tool changes
- Oversized regulator knob is easy to use, even wearing work gloves
- 20 Gallon Air Tank: Easy to transport & store; 125 PSI maximum pressure
- Lever-Type Tank Drain Valve: Simplifies maintenance; extends air tank life
- Roll Cage Design With Anti-Vibration Feet: Never-flat wheels take on stairs & rugged terrain with ease
Specifications:
- Fuel Type: Electric
- Height: 45-15/16"
- Width: 18-11/16"
- Length: 21-5/8"
- Product Weight: 132 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
- Pressure Regulator Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 20
Pump Specifications:
- Lubrication Type: Oil Free
- CFM: 6
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 14A
- dB Rating: 53
- Voltage: 115V
- Voltage: 115V
Dimensions and Measurements
CFM | 6 |
Height | 45.96 in. |
Length | 21.64 in. |
Product Weight | 132 lbs. |
Width | 18.66 in. |
Dimensions and Measurements
CFM | 6 |
Height | 45.96 in. |
Length | 21.64 in. |
Product Weight | 132 lbs. |
Width | 18.66 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7.9 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 50 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 7.9 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 50 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Oil Sight Glass Included | No |
Pressure Gauge Included | Yes |
Pressure Regulator Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Vertical |
Tank Outlet Size | 1/4" |
Tank Size | 20 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 14 |
Decibels | 53 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Electrical and Operational Information
Amperage | 14 |
Decibels | 53 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
