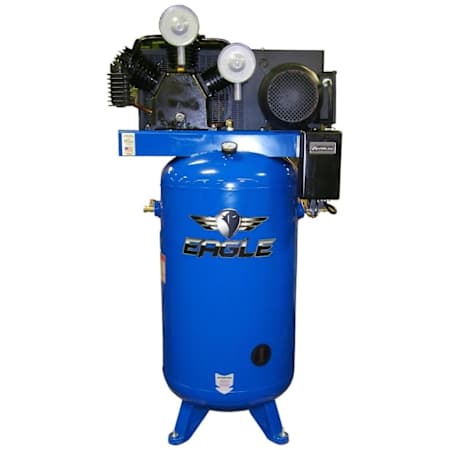

Eagle 7.5 HP 80 Gal 175 Max PSI 24.6 CFM Two-Stage Stationary Electric (208, 230 Volt 1 Phase) Reciprocating Air Compressor
Model: 7180V2-MS|Item: bci5120913
$3,058.07
10 In Stock
Details
Product Information:
- Rugged 2 Stage Compressor With Cast Iron Cylinders: Run heavy duty tools, or multiple tools at the same time
- "V" Design: Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders: For smoother, cooler operation & easy maintainence
- Heavy Duty Pressure Switch: With convenient on/off control
- Metal Air Filters With "Auto Drop" Feature: Extends compressor life, easy to maintain
- 208/230V Single Phase Motor: Thermally protected
- Efficient Heat Removal From Pulley Fan: Promotes cooler running & longer life
- Sturdy Metal Belt Guard: Protects you and the belt
- 80 Gallon ASME Tank
- Rated to 175 PSIG
- Outlet valve included
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 68"
- Width: 24"
- Length: 35"
- Product Weight: 490 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 25
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Amperage: 30A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 24.6 |
Height | 68 in. |
Length | 35 in. |
Product Weight | 490 lbs. |
Width | 24 in. |
Dimensions and Measurements
CFM | 24.6 |
Height | 68 in. |
Length | 35 in. |
Product Weight | 490 lbs. |
Width | 24 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Aluminum, Cast Iron Sleeve |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 30 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 30 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
