The DTC C85B6A5NH has been discontinued
** See similar or replacement items below **
Item # bci4705565

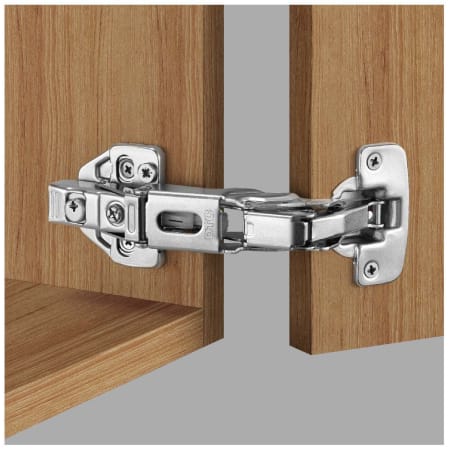

DTC C85 Series Partial Overlay Concealed Euro Cabinet Door Hinge with 100 Degree Opening Angle and Soft Close Function - Single Hinge
Model: C85B6A5NH|Item: bci4705565
from theC85 Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
100 Degree Soft-closing Doweled Half Overlay Pivot Pro Hinge
Features:
- Includes a single (1) hinge in each order
- Constructed of high quality steel for durability and dependability
- Covered by DTC's limited lifetime manufacturer warranty
- Soft close function ensures your cabinet door will close quietly
- 3-way adjustable hinge for easy and customizable installation
- Designed for a 100 degree opening angle
Specifications:
- Hinge Mount: Partial Overlay
- Opening Angle: 100
- Material: Steel
- Installation Type: Screws
- Cup Diameter: 1-3/8"
- Bore Distance: 0.12, 0.28"
- Cup Depth: 3/8"
- Mount Centers: 1-11/16"
Manufacturer Resources

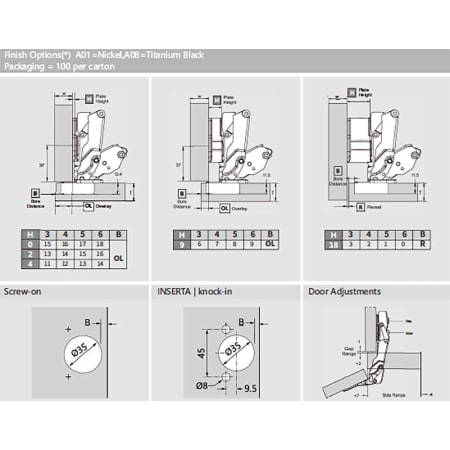

Specification SheetDimensions and Measurements
Boring Distance | 0.12, 0.28 mm |
Cup Depth | 0.39 in. |
Cup Depth mm | 10 mm |
Cup Diameter | 1.38 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 0.95 in. |
Mount Centers | 1.675 in. |
Mount Centers mm | 43 mm |
Opening Angle | 100 |
Overlay | Partial |
Product Weight | 0.16 lbs. |
Quantity | 1 |
Dimensions and Measurements
Boring Distance | 0.12, 0.28 mm |
Cup Depth | 0.39 in. |
Cup Depth mm | 10 mm |
Cup Diameter | 1.38 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 0.95 in. |
Mount Centers | 1.675 in. |
Mount Centers mm | 43 mm |
Opening Angle | 100 |
Overlay | Partial |
Product Weight | 0.16 lbs. |
Quantity | 1 |
Included Components
Installation Hardware Included | No |
Included Components
Installation Hardware Included | No |
Characteristics and Features
3-Way Adjustable | Yes |
Adjustable Depth | Yes |
Adjustable Height | Yes |
Adjustable Side to Side | Yes |
Arm Type | Half Cranked |
Bulk Pack | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Demountable | No |
Hinge Mount | Partial Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | No |
Soft Close | Yes |
Characteristics and Features
3-Way Adjustable | Yes |
Adjustable Depth | Yes |
Adjustable Height | Yes |
Adjustable Side to Side | Yes |
Arm Type | Half Cranked |
Bulk Pack | No |
Cabinet Type | Face Frame, Panel (Frameless) |
Demountable | No |
Hinge Mount | Partial Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | No |
Soft Close | Yes |
Warranty and Product Information
Collection | 85 |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | 85 |
Warranty and Product Information
Collection | 85 |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | 85 |
