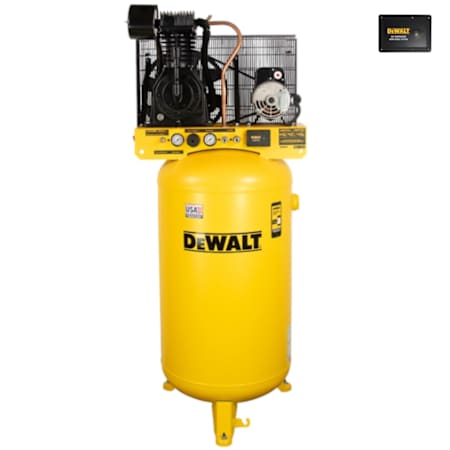

Dewalt 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Monitoring System

Product Information:

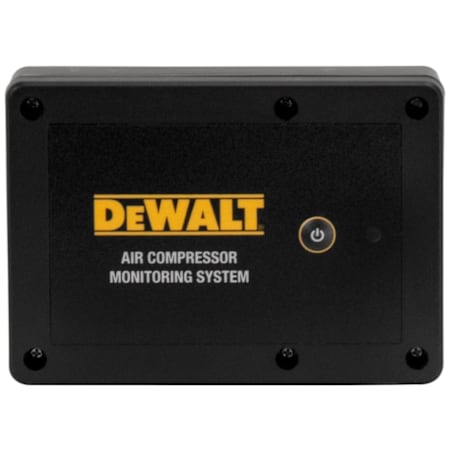

• Includes Air Compressor Monitoring System
  • Helps you protect your air compressor investment
  • Compatible w/ Android 11 or later & iOS Apple 14.8 or late


• Provides Important Data & Automatic Maintenance Reminders
  • Easy to use dashboard for monitoring your compressor
  • Hours until oil change, filter replacement and when to check belt tension


• 5 HP Electric Motor With Thermal Overload Protection
  • T.O.P.S. protects the motor from voltage fluctuations; Magnetic starter not required
  • Easy to wire into your 230 volt, single phase system


• Patented Two Stage Cast Iron Industrial Duty Pump
  • Provides 17.9 CFM at 100 PSI for big jobs & multiple users
  • Shipped With Synthetic Blend Compressor Oil


• Patented Cast Iron Flywheel: Large fins for low pump RPM, improved cooling, longer pump life


• Patented Asymmetrical, Deep Groove Cooling Fins: Cooler pumps last longer & run more effectively


• Integrated Control Panel
  • Tank & output pressure gauges are large & easy to see
  • Easy access to pressure regulator & 2 quick-connect air outlets


• 80 Gallon Air Tank: ASME rated for safety; 175 PSI maximum pressure


• Pump Warranty Extension: Purchase & use of maintenance kit doubles the pump warranty


• 2 Year Factory Pump Warranty


• 1 year Factory Warranty on all other parts


• Made In U.S.A. w/ Global Materials

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 79"
• Width: 32"
• Length: 35"
• Product Weight: 470 lbs
• Warranty: 2 Year Commercial and 2 Year Residential

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 18
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 22A
• Voltage: 230V
• Voltage: 230V
