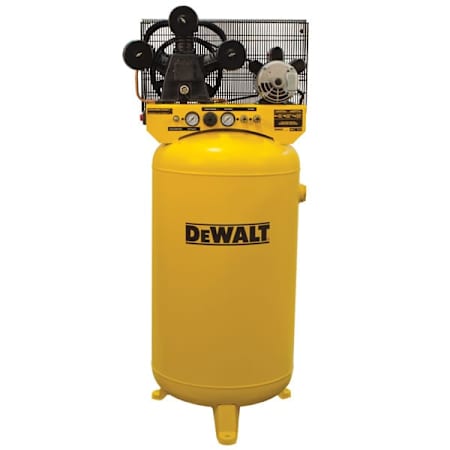

Dewalt 4.5 HP 80 Gal 155 Max PSI Single-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: DXCMLA4708065|Item: bci5120782
$1,534.99
11 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Heavy Duty 4.7 HP Induction Motor: 240 Volt motor provides maximum performance & efficiency
- Belt Drive
- Better power transfer & longevity than direct drive units
- 12 inch cast iron flywheel is enclosed for safety
- 3 Cylinder, Hi-Flo Pump
- Durable, 1-piece cast iron crankcase
- Reliable Swedish stainless flex leaf valves
- Large intake air filter/silencers for cooler operation
- 80 Gallon Tank
- ASME certified for safety; 16.1 CFM at 40 PSI, 14 CFM at 90 PSI
- Large capacity for longer air tool run times
- Convenient Control Panel
- Easy-to-see tank & tool pressure gauges
- 2 quick connect air outlets let you run multiple tools
- Easy access to air flow regulator & pressure relief valve
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 77"
- Width: 34-3/4"
- Length: 31-1/2"
- Product Weight: 354 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 14
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 4.5 HP
- Amperage: 22A
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 14 |
Height | 77 in. |
Length | 31.5 in. |
Product Weight | 354 lbs. |
Width | 34.75 in. |
Dimensions and Measurements
CFM | 14 |
Height | 77 in. |
Length | 31.5 in. |
Product Weight | 354 lbs. |
Width | 34.75 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 22 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 4.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 22 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 4.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
