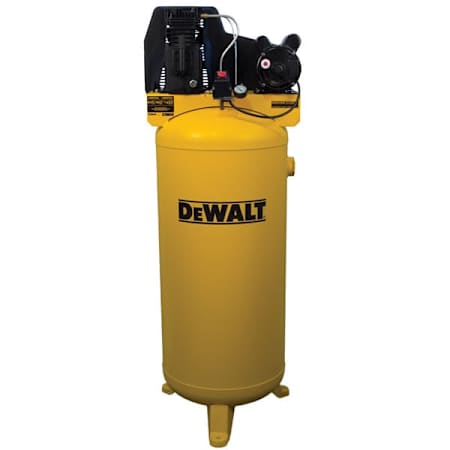

Dewalt 3.5 HP 60 Gal 155 Max PSI Single-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor
Model: DXCMLA3706056|Item: bci5120876
$864.89
68 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- Heavy Duty 3.7 HP Induction Motor: 240 Volt motor provides maximum performance & efficiency
- Belt Drive
- Better power transfer & longevity than direct drive units
- 12 inch cast iron flywheel is enclosed for safety
- Twin Cylinder Pump
- Durable, 1-piece cast iron crankcase
- Aluminum head & valve plate help dissipate heat
- Reliable stainless reed valves & automotive style ball bearings
- 60 Gallon Tank
- ASME certified for safety; 13.4CFM at 40 PSI, 11.5CFM at 90 PSI
- Large capacity for longer air tool run times
- Convenient Controls: Easy to access pressure gauge, On/Off switch, & oil fill
- Shipped With Synthetic Oil
- Helps get longest life & best performance from your compressor
- Oil sight glass makes maintenance easier
- Made In U.S.A.
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 69-1/4"
- Width: 27"
- Length: 31"
- Product Weight: 247 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 12
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 3.5 HP
- Amperage: 17A
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 11.5 |
Height | 69.25 in. |
Length | 31 in. |
Product Weight | 247 lbs. |
Width | 27 in. |
Dimensions and Measurements
CFM | 11.5 |
Height | 69.25 in. |
Length | 31 in. |
Product Weight | 247 lbs. |
Width | 27 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 25 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 17 |
Breaker Needs | 25 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 3.5 |
Maximum Operating Pressure (PSI) | 155 |
Stages | Single-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Residential |
