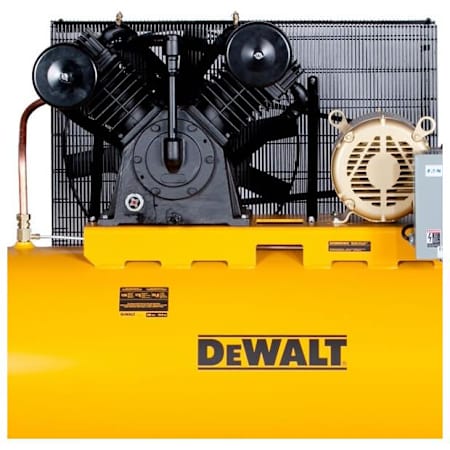

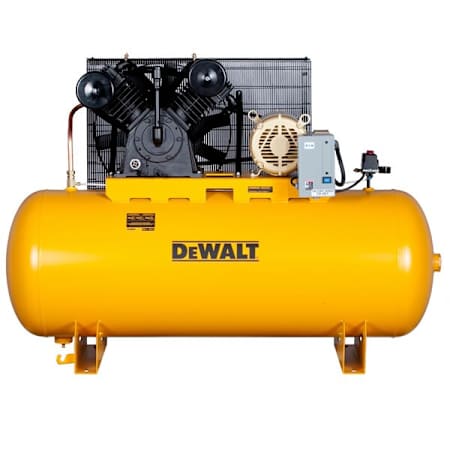

Dewalt 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor
Model: DXCMH9919910|Item: bci5120661
$4,767.88
3 In Stock
Details
Product Information:
- 10 HP Baldor Electric Motor
- 4 pole, 1750 RPM, NEMA rated for reliability
- Conveniently equipped with pre-wired & mounted magnetic starter
- Patented 2-Stage Cast Iron Industrial-Duty Pump: Provides 35 CFM @ 100 PSI, 33.6 CFM @ 175 PSI for big jobs & multiple users
- Balanced Flywheel With Large Glass-Filled Composite Fan: Large fins for low pump RPM, improved cooling, longer pump life
- High Efficiency Finned Copper Intercooler: Cooler pumps last longer & run more effectively
- Extra Capacity Oil Reservoir: Ensures lower oil temperatures for longer pump life
- Automotive-Type 1-Piece Counter-Balanced Crankshaft: Provides smooth, trouble-free operation
- 120 Gallon Air Tank: ASME rated for safety; 175 PSI maximum pressure
- Uniquely Designed Metal Belt Guard: Improves pump cooling up to 60°F over other designs
- 2 Year Limited Factory Warranty
- Purchase & use of maintenance kit doubles the pump warranty
- Protects your investment
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 60"
- Width: 29"
- Length: 75"
- Product Weight: 920 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 34
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 25A
- dB Rating: 84
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 33.6 |
Height | 60 in. |
Length | 75 in. |
Product Weight | 920 lbs. |
Width | 29 in. |
Dimensions and Measurements
CFM | 33.6 |
Height | 60 in. |
Length | 75 in. |
Product Weight | 920 lbs. |
Width | 29 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25 |
Breaker Needs | 35 Amps |
Decibels | 84 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Amperage | 25 |
Breaker Needs | 35 Amps |
Decibels | 84 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
