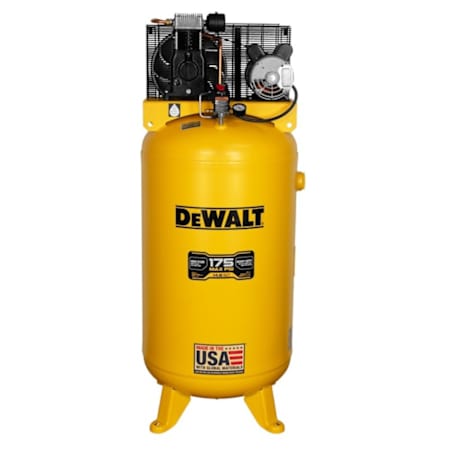

Dewalt 5 HP 80 Gal 175 Max PSI Single-Stage Stationary Electric (208, 230 Volt) Reciprocating Air Compressor
Model: DXCM805.COM|Item: bci5120406
$1,348.96
56 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse in 4 to 5 business days
-Details
Product Information:
- High Flow 208/230V Single-Stage Air Compressor
- Competes with two-stage compressors with equivalent PSI & CFM
- Plenty of power to run a wide range of air tools & 70 dBA is ideal for indoor
- Heavy-Duty 5.0 HP Belt-Drive Induction Motor
- Better power transfer and longevity than direct drive units
- Poly-v pulley and drive belt provide smooth operation with less vibration
- i15 High Flow Twin Cylinder Pump
- Cast iron, oil-lubricated pump with oil sight glass
- Aluminum head and valve plate to maximize heat dissipation
- High-grade stainless steel valves with superior o-ring seals to eliminate oil leaks
- High-Efficiency Aluminum Flywheel
- Balanced for best performance and durability
- Allows maximum airflow and lower start-up amps due to less starting
- Delivers 14.6 CFM at 90 PSI; Max 175 PSI
- Max 175 PSI is typically found in two-stage compressors
- Provides longer air tool run times with 80-gallon tank & 175 PSI
- 80-Gallon ASME Tank
- Easy-access manual drain simplifies routine maintenance
- Tie-down holes on platform sides to secure unit when transporting
- Convenient Controls
- Equipped with pressure gauge and on/off switch
- Perfect for a small shop, automotive enthusiast or serious DIY user
- Limited Manufacturer Warranty: 2-year pump and 1-year on all other parts
- Made In U.S.A.
Specifications:
- Certifications: ASME and CSA
- Fuel Type: Electric
- Height: 62-11/16"
- Width: 25-3/8"
- Length: 41"
- Product Weight: 269 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 15
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 20A
- Voltage: 208, 230V
- Voltage: 208, 230V
Dimensions and Measurements
CFM | 14.6 |
Height | 62.7 in. |
Length | 41 in. |
Product Weight | 269 lbs. |
Width | 25.4 in. |
Dimensions and Measurements
CFM | 14.6 |
Height | 62.7 in. |
Length | 41 in. |
Product Weight | 269 lbs. |
Width | 25.4 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 17 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 17 CFM |
CFM Rated @ | 90 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pressure Regulator Included | No |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 20 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Single-Stage |
Voltage | 208, 230 |
Electrical and Operational Information
Amperage | 20 |
Breaker Needs | 30 Amps |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Contractor |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Single-Stage |
Voltage | 208, 230 |
Warranty and Product Information
Certifications | ASME, CSA |
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA |
Manufacturer Warranty | 1 Year Residential |
