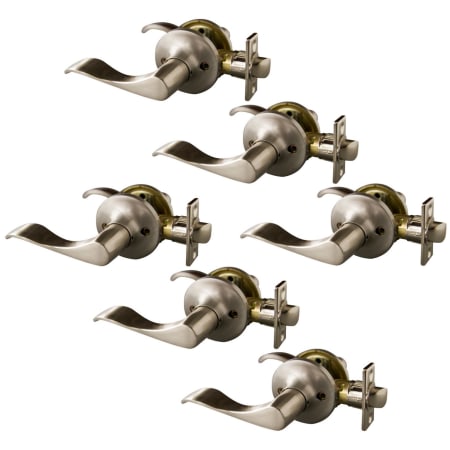

Design House Stratford Passage Door Lever Set with Round Rose - Pack of 6
Model: 190777|Item: bci3849400
from theStratford Collection
$152.92
Finish: Satin Nickel -
Special Order
Details
Features:
- Beautiful satin nickel finish
- Constructed of high quality metal for lasting durability
- Coordinates well with other items from the Stratford series
- Reversible handing for easy installation on left or right handed doors
- Includes all necessary mounting hardware
- Covered by a limited lifetime mechanical warranty
Specifications:
- BHMA Certification: Grade 3
- Projection: 2"
- Backset: Adjustable 2-3/8" or 2-3/4"
- Door Thickness: 1-3/8" to 1-3/4"
- Material: Zinc
- Quantity: 6 sets
- 190512: Stratford Passage Set in Oil Rubbed Bronze - Pack of 2
- 190553: Stratford Passage Set in Satin Nickel - Pack of 2
- 190736: Stratford Passage Set in Oil Rubbed Bronze - Pack of 6
- 190777 (This Model): Stratford Passage Set in Satin Nickel - Pack of 6
- 190843: Stratford Passage Set in Oil Rubbed Bronze - Pack of 12
- 190884: Stratford Passage Set in Satin Nickel - Pack of 12
Manufacturer Resources
Specification SheetDimensions and Measurements
Backset | Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-3/8", 1-5/8", 1-1/2" |
Edge Bore | 1" |
Handle Length | 4.65 in. |
Handle Projection | 2 in. |
Product Weight | 8.58 lbs. |
Trim Height | 2.56 in. |
Trim Width | 2.56 in. |
Dimensions and Measurements
Backset | Adjustable 2-3/8" or 2-3/4" |
Bore Hole | 2-1/8" |
Door Thickness | 1-3/4", 1-3/8", 1-5/8", 1-1/2" |
Edge Bore | 1" |
Handle Length | 4.65 in. |
Handle Projection | 2 in. |
Product Weight | 8.58 lbs. |
Trim Height | 2.56 in. |
Trim Width | 2.56 in. |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Reversible, Left, Right |
Latch Faceplate | Drive-In |
Lever Shape | Wave |
Material | Zinc |
Rosette Shape | Round |
Theme | Transitional |
Characteristics and Features
Concealed Screws | No |
Function | Passage |
Handing | Reversible, Left, Right |
Latch Faceplate | Drive-In |
Lever Shape | Wave |
Material | Zinc |
Rosette Shape | Round |
Theme | Transitional |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Stratford |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime Mechanical |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
BHMA Certification | Grade 3 |
Collection | Stratford |
Fire Rated | No |
Manufacturer Warranty | Limited Lifetime Mechanical |
