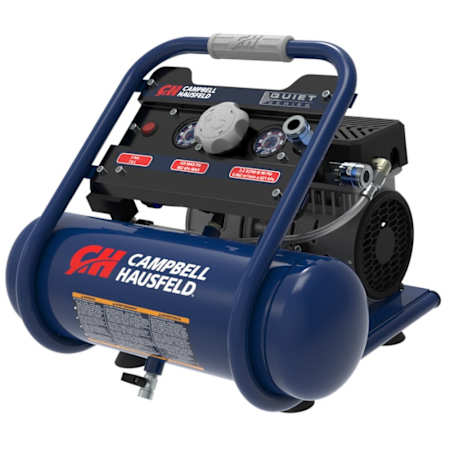

Campbell Hausfeld 2 HP 2 Gal 125 Max PSI Single-Stage Portable Electric (115 Volt) Reciprocating Air Compressor
Model: DC020500|Item: bci5120789
$276.68
277 In Stock
Details
Product Information:
- Campbell Hausfeld Quiet Oil-Free Compressor
- Up to 90% quieter than most other compressors
- Designed to be one of the quietest air compressors in the industry at 65 dBA
- Reliable 1-HP Motor
- Low 1750 RPM reduces wear and tear
- Draws only 7.5 amps, works on most household 115V outlets
- Oil-Free Double Piston Pump System
- Oil-free system requires no pump maintenance
- Produces 2.2 CFM at 90 PSI and 3.2 CFM at 40 PSI
- Top-Mounted Control Panel
- Dual gauges to monitor tool & tank pressure at a glance
- Single 1/4" air hose quick connector simplifies tool use
- Oversized regulator knob is easy to use, even wearing work gloves
- 2-Gallon Hot Dog Style Tank: Easy to carry, transport & store; 125 PSI maximum pressure
- Lever-Type Tank Drain Valve: Simplifies maintenance; extends air tank life
- Roll Cage Design With Anti-Vibration Feet
- Protects the pump; rubber handle is easy on your hands
- Helps keep the compressor steady and reduces vibration
Specifications:
- Fuel Type: Electric
- Height: 18-5/16"
- Width: 22-11/16"
- Length: 22-5/8"
- Product Weight: 38 lbs
- Warranty: 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 1/4"
- Tank Size: 2
Pump Specifications:
- Lubrication Type: Oil Free
- CFM: 2
- Drive Type: Direct Drive
Engine and Motor Specifications:
- Horsepower: 2 HP
- Amperage: 7.5A
- dB Rating: 65
- Voltage: 115V
- Voltage: 115V
Dimensions and Measurements
CFM | 2.2 |
Height | 18.3 in. |
Length | 22.6 in. |
Product Weight | 38 lbs. |
Width | 22.7 in. |
Dimensions and Measurements
CFM | 2.2 |
Height | 18.3 in. |
Length | 22.6 in. |
Product Weight | 38 lbs. |
Width | 22.7 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 3.2 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 50 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Pressure Gauge Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 2 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM @ 40 PSI | 3.2 CFM |
CFM Rated @ | 90 PSI |
Duty Cycle | 50 % |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Free |
Mounting Type | Portable |
Pressure Gauge Included | Yes |
Pump Material | Aluminum |
Tank Orientation | Horizontal |
Tank Outlet Size | 1/4" |
Tank Size | 2 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 7.5 |
Decibels | 65 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Electrical and Operational Information
Amperage | 7.5 |
Decibels | 65 |
Drive Type | Direct Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 2 |
Maximum Operating Pressure (PSI) | 125 |
Stages | Single-Stage |
Voltage | 115 |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
Warranty and Product Information
Manufacturer Warranty | 1 Year Residential |
