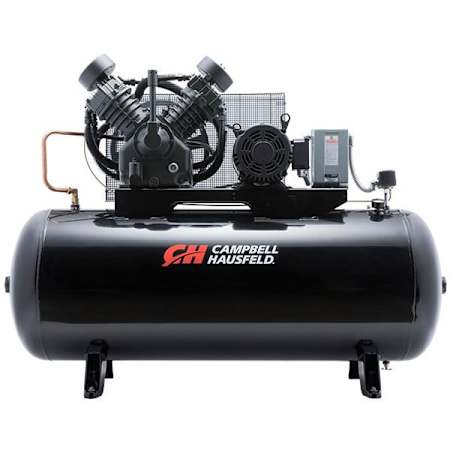

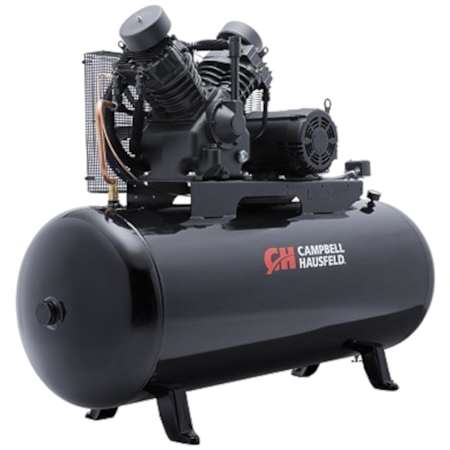

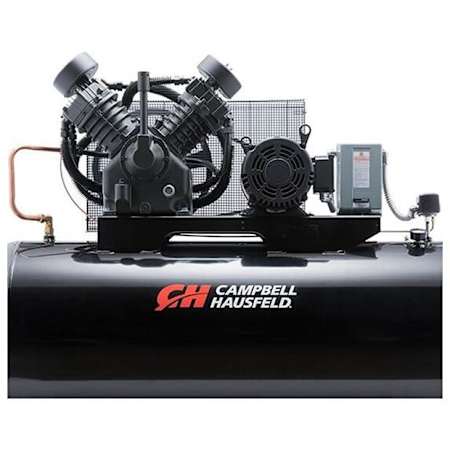

Campbell Hausfeld 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Starter

Product Information:

• Rugged Cast Iron Oil Lubricated Two Stage Pump: Made for heavy duty commercial & industrial applications


• Delivers Up To 15,000+ Hours Of Pump Life
  • Based on B-10 bearing rating
  • Durable stainless steel valves & ductile iron crankshaft
  • Reliable precision balanced flywheel & low pump RPM


• 10 Horsepower Tri-Voltage NEMA Motor
  • Totally enclosed metal belt guard
  • Pre-installed and wired starter


• Viton High Temperature O-Rings
  • Superior high pressure sealing compared to paper-type gaskets
  • Advanced design for leak-proof sealing


• 120 Gallon ASME Code Tank: Certified to 200 PSI maximum pressure for safe operation


• Limited Manufacturer Warranty: 1-yr on compressor and 3-yr on pump & air receiver

Specifications:

• Certifications: CSA and UL
• Fuel Type: Electric
• Height: 56"
• Width: 78"
• Length: 29-1/2"
• Product Weight: 835 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Pressure Gauge Included

Tank Specifications:

• Tank Outlet Size: 1"
• Tank Size: 120

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 34
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Voltage: 208V
• Voltage: 208V
