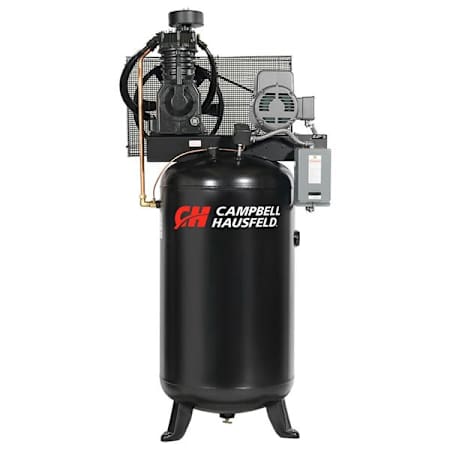

Campbell Hausfeld 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Commercial Reciprocating Air Compressor
Model: CE7050|Item: bci2102978
from theAir Compressor Collection
$3,172.17
2 In Stock
Details
Product Information:
- Commercial Grade Two Stage Air Compressor: Ideal for auto repair facilities and tire repair outlets
- Rugged Cast Iron Oil Lubricated Two Stage Pump: Made for heavy duty commercial & industrial applications
- Delivers Up To 15,000+ Hours Of Pump Life
- Based on B-10 bearing rating
- Durable stainless steel valves & ductile iron crankshaft
- Reliable precision balanced flywheel & low pump RPM
- 5 Horsepower 230 Volt Single Phase NEMA Motor
- Totally enclosed metal belt guard for safety
- Pre-installed and wired starter
- 80 Gallon ASME Code Tank: Certified to 175 PSI maximum pressure for safe operation
- Pressure Switch For Automatic Stop/Start Operation: Fits into many professional operations
- Viton High Temperature O-Rings
- Superior high pressure sealing compared to paper-type gaskets
- Advanced design for leak proof sealing
- Exceptional 3 Year Warranty On Tank & Pump: 1 year warranty on all other components
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 78"
- Width: 42"
- Length: 35"
- Product Weight: 540 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 16
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 16.4 |
Height | 78 in. |
Length | 35 in. |
Product Weight | 540 lbs. |
Width | 42 in. |
Dimensions and Measurements
CFM | 16.4 |
Height | 78 in. |
Length | 35 in. |
Product Weight | 540 lbs. |
Width | 42 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
