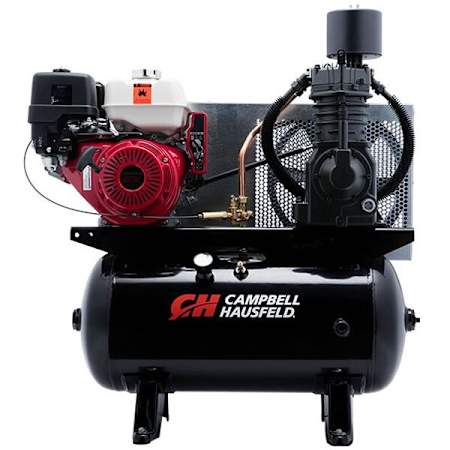

Campbell Hausfeld 13 HP 30 Gal 175 Max PSI 24.5 CFM Two-Stage Truck Mount Gas Reciprocating Air Compressor with Electric Start Honda Engine
Model: CE7003|Item: bci5120932
$3,188.33
2 In Stock
Details
Product Information:
- Rugged Cast Iron Oil Lubricated Two Stage Pump: Made for heavy duty service truck & mobile applications
- Delivers Up To 15,000+ Hours Of Pump Life
- Based on B-10 bearing rating
- Durable stainless steel valves & ductile iron crankshaft
- Reliable prescision balanced flywheel & low pump RPM
- 13 HP Honda Gasoline Engine With Electric Start & Alternator
- Use the compressor without running down your vehicle battery
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- 30 Gallon ASME Code Tank With Safety Valve & Tank Drain: Certified to 200 PSI maximum pressure for safe operation
- Exceptional 3 Year Warranty: Galvanized steel belt guard is ideal for outdoor use
- Pilot Valve Control Saves Fuel: Automatically idles at 175PSI; resumes full throttle at 145PSI
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 21"
- Width: 44-1/2"
- Length: 52-1/2"
- Product Weight: 519 lbs
- Warranty: 3 Year Commercial and 3 Year Residential
Included Accessories:
- Pressure Gauge Included
- Filter Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 25
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Auto Idle Mode Included
- Honda
- Horsepower: 13 HP
Manufacturer Resources
Product ManualDimensions and Measurements
CFM | 24.5 |
Height | 21 in. |
Length | 52.5 in. |
Product Weight | 519 lbs. |
Width | 44.5 in. |
Dimensions and Measurements
CFM | 24.5 |
Height | 21 in. |
Length | 52.5 in. |
Product Weight | 519 lbs. |
Width | 44.5 in. |
Included Components
Filter Included | Yes |
Included Components
Filter Included | Yes |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM @ 40 PSI | 27.2 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | Yes |
CFM @ 40 PSI | 27.2 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda |
Engine Low Oil Shutdown | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Button Start w/ Recoil |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Button Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 3 Year Commercial, 3 Year Residential |
