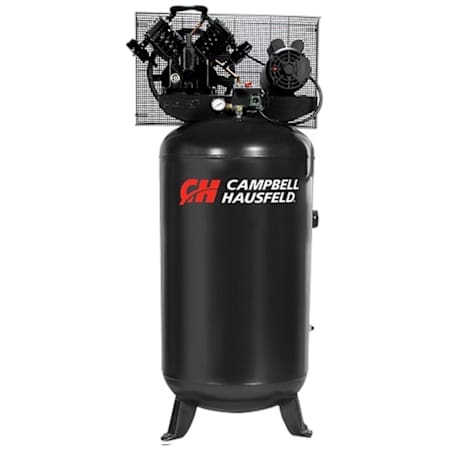

Campbell Hausfeld 5 HP 80 Gal 140 Max PSI Single-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor

Product Information:

• Campbell Hausfeld 230 Volt Air Compressor: Ideal for small shops, automotive enthusiast or serious do-it-yourselfer


• Cast Iron Twin Cylinder Pump
  • Oil-lubricated for extended performance
  • Cast-iron pump is designed for long, reliable life of up to 10,000 hours


• High Air Flow: Operates over 20 air tools for automotive spray painting, automotive sanding work, cutting sheet metal, grin


• Delivers 16 CFM @ 90 PSI
  • Tank rated to 140 PSI maximum
  • 80-gallon, ASME-certified tank is a vertical design for space saving in the shop or garage


• Commercial-Style Metal Belt Guard: More durable than plastic; allows belt to run cooler & last longer


• Tank Pressure Gauge & Pressure Switch
  • View the pressure of your tank easily
  • Preset pressure switch set at 110 PSI cut-in and 140 PSI cut-out


• Manual Tank Drain: Routine draining prevents air contamination & prolongs tool life


• 3-Year Limited Warranty (1-Year Labor): Protects your investment against defects in material and/or workmanship


• ***Can Not Be Wired at 208V & Unit Does Not Ship With Oil***

Specifications:

• Certifications: ASME, CSA, ETL, and UL
• Fuel Type: Electric
• Height: 81"
• Width: 43"
• Length: 31"
• Product Weight: 409 lbs
• Warranty: 3 Year Residential

Included Accessories:

• Pressure Gauge Included
• Filter Included

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 16
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 22A
• dB Rating: 86
• Voltage: 230V
• Voltage: 230V
